Remote controll USB rechargeable Portable Body Massager ten

Remote controll USB rechargeable Portable Body Massager tens massager for homecare

Advertising slogan: Anytime, anywhere, wireless relaxation

I. Operating Principle

MiNi MassaGer id CE-certified world's first wireless smart massager. International advanced micro-controller chip technology is adopted to control the host which generates electronic bio-molecular pulse that resonates with human cell molecules. Body nerves and muscles will be profoundly simulated with electric wave transmission to cause neuromuscular excitability, blood vessels dilation, promote blood circulation and metabolism, clear vital energy and blood circulation, effectively and safely recuperate body parts, effectively alleviate fatigue, and reduce muscle soreness. Characterized by small size, easy portability, and unlimited operating range, it will bring you healthy and fashion living by allowing wireless relaxation.

II. Product parameters

III. Product configuration details

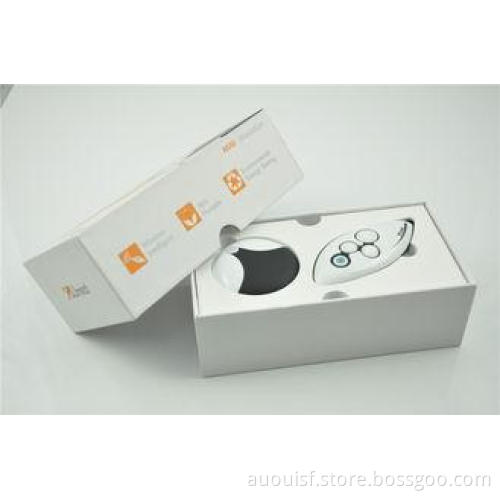

MiNi MassaGer configuration details:

IV. Functions of main accessories

1.Host function:

Host and easy paste are main parts for human body relaxation. The power switch on the host is for power control

2. Host indicator function

When connected to USB power supply, the lit red light stands for battery charging, the battery is fully charged when the red light goes off;

During application process, the lit blue light indicates power on, the flashing blue light indicates the working status, the blue light going off stands for shutdown mode.

3: Remote control key functions

"Mode" button is used for relaxation mode selection;

"+" button is used to strengthen relaxation;

"-" Button is used to weaken relaxation.

4: Remote indicator function: Press "+" "- " or "mode" button, the blue light goes on.

USB cable function: used for host charging.

V. Usage method

1: Open the packing box and install easy paster to the host;

2: Open the back cover following the direction of arrow of the remote control, put button cells into the remote control and close the cover;

3: Remove the protective film of easy paste, and paste it on muscle soreness section;

4: Tap the power button,then press the “+”or “-” for system matching, the host switch shows blue light, so the default mode is percussion;

5: Press the mode button and strength mode on the remote control to adjusted to proper pattern and intensity.

6: Press the “mode” button of remote control' to change massage area to clear tap position;

7: Upon finishing relaxation, please turn off the host power, then remove the host and easy paste, the paste will be separated from the host and affixed with protective film to prevent dust and moisture affecting repeated use.

8: Connect the host and power with USB cable when the host is charged and determine whether the host is fully charged by the status of the red light.

VI: Applied body parts

Body parts to be relaxed: shoulders, back, legs, and arms.

VII. Storage and maintenance

1: Rinse the MiNi MassaGer paste to remove fur and feature and other adsorbates after using ,to extend its service life ;

2: MiNi MassaGer should be stored in a safe, dry and cold place, avoid falling, water, moisture, fire, and corrosion to prevent short circuit-caused accidents;

3: The button cells inside the remote control shall be remove and properly placed if the massager is not to be used in a relatively long time; Charge the host regularly and start it for regular inspection to extend battery life;

Store the massager in the packing box.

VIII. Safety warnings

1: Never stick two pasters to each other during application;

2: Never use non-standard or non-original accessories and attachments;

3: Use by people with heart disease, cardiac pacemakers or other life prolonging medical electronic equipment is prohibited;

4: Pregnant women, women during menstruation or having hypersensitivity to the product shall not use this appliance;

5: Do not use this product in an aircraft;

6: Do not use this product on wounds, weak body parts or infected skin;

7: Do not connect the USB cable to charge when the computer starts, relaxing while charging is not recommended;

Adjusting grades according to personal physical differences to avoid discomfort caused by excessive strength.

IX. Fault and maintenance

Please refer to the following summary table to identify causes of problems before the product is sent to the maintenance.

X. The actual product shall prevail and you will be notified of updates, if any. The final power of interpretation belongs to Umed brand
