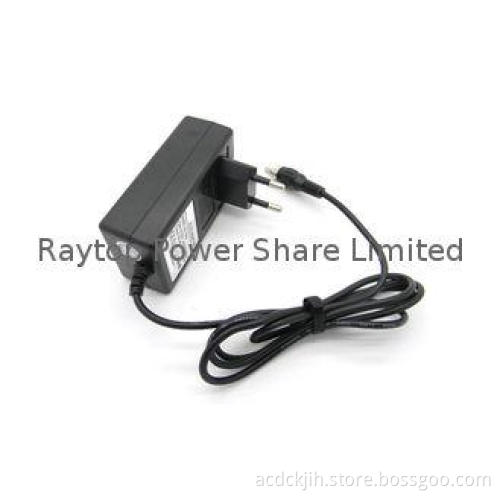

Short Circuit Wall Mount Power Adapter 16V 2A FCC Part 15 Class B For Cannon Printer
Quick Detail:
Switching mode power adapter, DC16V 2000mA, wall mount in conformity with CE, RoHS, FCC certification. We can design exclusive model for your market only.
Specs:
Input: AC100-240V, 500A max.
Frequency: 50/60Hz
Output: DC16V, 2000mA
DC Cable: 20AWG, Copper, length: 1.2M
Plug: EU, UK, US, SAA, CCC
Features:
-High efficiency:>82%;
-Protection: Short circuit protection, over voltage protection, over current protection.
-MTBF: 50,000 hours.
Approval: CE, RoHS, FCC
Warranty: 2 years
Description:
This is an universal AC adapter come with tuning fork connector, for special usage of Canon printer. It has high efficiency as well as steady performance.
Note:
indoor use only.
Applications:
used for cordless phone, sphygmomanometer,repeater etc.
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
500mA |
|
|
Inrush Current |
30A |
|
|
Output |
Rated Output Voltage |
DC16V |
|
Rated Output Current |
2000mA |
|
|
Rated Power |
32W |
|
|
Ripple and Noise |
150mV p-p |
|
|
Standby Power Consumption |
0.5W |
|
|
Turn-on |
5s |
|
|
Hold-up |
20s |
|
|
Over Voltage Protection |
Yes |
|
|
Over Current Protection |
Yes |
|
|
Short Circuit Protection |
Yes, automatically recover after short circuit removed. |
|
|
Reliability |
Hi-pot |
3000Vac |
|
Insulation Resistance |
Input to output at 500Vdc |
|
|
Leakage Current |
5mA |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
40+/-5 ℃, full load, 12 hours |
|
|
Drop Test |
6 direction, each one time from height 1.0M |
|
|
Environmental |
Operating Temperature |
0~40℃ |
|
Operating Humidity |
10~80% |
|
|
Storage Temperature |
-20~65℃ |
|
|
Storage Humidity |
0~90% |
|
|
Safety Approvals |
CE, RoHS, FCC, UL, SAA |
|
|
Warranty |
2 Years |
|
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% free backup of order quantity;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service
