CCXC Analog Video Hirose Cable Assemblies 2meter with HR10A
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

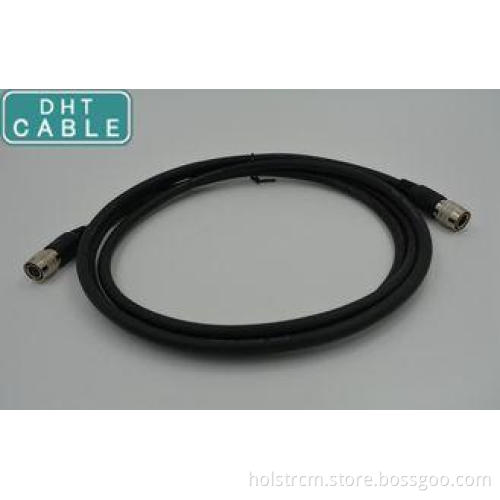

Sony CCXC-12P02N, CCXC Analog Video Assemblies 2meter
Description
The CCXC-12P02N is a 2 meter 12-pin interconnect cable, compatible the Hitachi C201-KSM and Intercon VCP-02-S cables.This is robust cable can be used in Chain equipment.
The 12-pin Male/Female Camera Interconnect Cable with molded HR10A-10P-12S and HR10A-10P-12P(73) connector is manufactured by DHT and is 100% compatible with 12-pin camera for Hitachi, Sony, Uniq, and Pulnix cameras ect.
Hitachi Part No. C 102 KS
Sony Part No. CCXC-12P02N
Features
100% compatible with 12-pin camera
Interconnect cables
Shielded
12pin Male/Female
For industrial application only.
OEM service is available
Standard Pin To Pin
- GND
- +12 VDC
- VIDEO GND
- VIDEO OUTPUT
- GND
- HD SYNC INPUT
- VD SYNC INPUT OR TRIGGER
- GND
- AUX SIGNAL
- AUX SIGNAL
- TRIGGER INPUT
- GND
Specifications:
|
Physical |
Cable Color |
Black |
|
Connector |
HR10A-10P-12S |
|
|
Jacket Material |
PVC |
|
|
Shell Material |
Polyester Elastomer |
|
|
Shell Color |
Black |
|
|
Shell Construction |
Pre mold in Poly Ethelene wrapped 360 degrees with copper tape terminated to shield, overmolded in black PVC. |
|
|
Cable construction |
24AWG*12C+DRAIN+AL/MAYLOR OD6.5MM BLACK PVC JACKET UL2464 |
|
|
Electrical
|
Voltage Rating |
DC 300V 0.08sec |
|
Current Rating |
1A |
|
|
Insulation Resistance |
20 Mohm MIN |
|
|
Dielectric Test |
3ohm Max |
|
|
Temperature Rating |
- 20 to +75 Celsius degree |
|
Applications:
|
Indutrial Camera |
DALSA,BASLER,SONY,COGNEX,CORECO,ADIMEC,EURESYS,JAI,IMPMEX,MATROX, DTA,PULNIX,EVISION,PLEORA,TOSHIBA TELI,NATIONALINSTRUMENT,REDLAKE,UNIQ,IDT,DVC,SILICONIMAGING,OMRON,PELCO, SENTECH,EPIX…… |
|
Imaging frame grabber |
SONY,CORECO,EPIX,EURESYS,FORESIGHT,MATROX,EVISION,NATIONAL INSTRUMENT…… |
|
Machine vision |
For all Camera Link standard interface |
|
Equipment Systems |
Automatic Optical Inspection system(AOI), Mould monitor, Robot device,Machine Arms,Medical Equipment,Factory Equipment…… |
