1080P HD Microscope Camera HDMI Interface 2.0M U-Disk Save

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

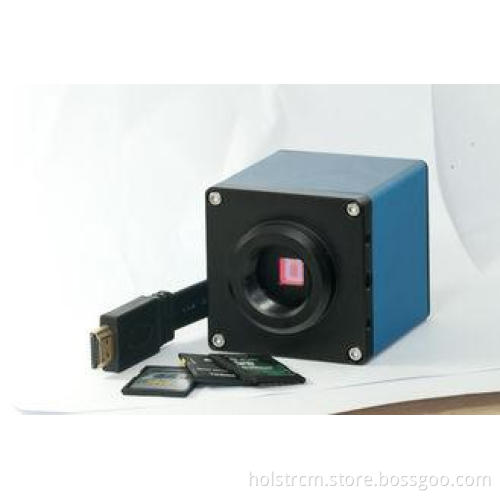

1080P HD Microscope Camera HDMI interface, 2.0M U-Disk save pictures,NO PC needed,control camera via display OSD menu

Parameters:

PART NUMBER	SM-U1080P-C
RESOLUTION	1920*1080
PIXEL SIZE	2.75 μm
OPTICAL SIZE	1/3"
COLOR DEPTH	12:12:12 RGB
FRAME RATE	60 fps
COLOR ADJUSTABLE	MANUAL/AUTO
BRIGHTNESS ADJUSTABLE	MANUAL/AUTO
TAKE PICTURE AND SAVED IN	TAKE PICTURE VIA CAMERA MENU OR TRIGGER WIRE,SAVE PICTURE IN U DISK(USB FLASH DRIVE)ALL COMPATIABLE,SUPPORT PICTURE REAL-TIME DISPLAY
CROSSHAIR/HAIR LINE	CROSSHAIR/HAIR LINE COLOR CHANGEABLE AND MOVABLE,CONTROL VIA CAMERA MENU
POWER SUPPLY	DC 12V, 2A(PACKED IN)
SHELL SIZE	60mm x 60mm x 65mm
OPERATING HUMIDITY	5%~85%
WORKING TEMPERATURE	0~60°C
OUTPUT INTERFACE	HDMI,DIRECT TO DISPLAY

Description:

1,1080P HD color camera allows you to connect the camera directly to a HD monitor with an HDMI input.

2, A PC not required for image processing, thus saving you bench space.

3, A built in SD card / USB Flash driver allows you to save images.

4, All features of this digital camera can be controlled via on screen display menus, such as RGB values, white balance, cross hair grid, and auto exposure.

5, 4 Vertical and 4 horizontal cross hair grids available with 6 color selections,every line is adjustable and movable.

6, Remote switch for capturing images onto the U-DISK is included.

7, Produces stunning life like images with exceptional clarity.

Applications:

Stereo Microscope	LEICA,NIKON,Carl Zeiss,OLYMPUS,MEIJI,UNITRON,MOTIC,HUVITZ,LUMENERA,PRIOR,OPTEM,PRESSER, CELESTRON,ESCHENBACH,EUROMEX,GEOPTIK,KONNS,NOVEX,SEBEN,
Medical ,biological,	Equipped with microscopes
industrial	The application of visual detection in detection of PCB plate To detect the PCB bare board by the visual system, detecting plate wire and element location and pitch error, line andelement size error, element shape error, line segment, through the plate dirty.
Equipment Systems	Automatic Optical Inspection system(AOI), Mould monitor, Robot device, Machine Arms, Medical Equipment, Factory Equipment…… Application of visual inspection in tiny part inspection Machine vision detection can easily deal with quality control of metal parts production, such as coins, auto parts, connectors etc.. Through HD real-time color image and overlay crosshairs, found the surface metal parts scratch, incomplete, discoloration, mucosal defects, easy to use, and greatly reduce human fatigue, improve the work efficiency and products quality.
