Standard 1 Phase Electrical Portable Meter Tester With Clamp CT , 20v – 420v
- Name: Portble meter tester, energy meter tester
- Power: Electronic
- Phase: Single Phase
- Accuracy Class: ±0.1%
- Meter position: 6 / 12 / 24 position
- Usage: Auto Electric meter test and calibration
- Voltage Range: 20V – 420V
- Current Range: 5A, 100A, 500A, 1000A
- Display waveform of voltage and current, Current measure with clamp CT
Portable Single Phase Electricity Meter Tester With Clamp Ct, 20v – 420v

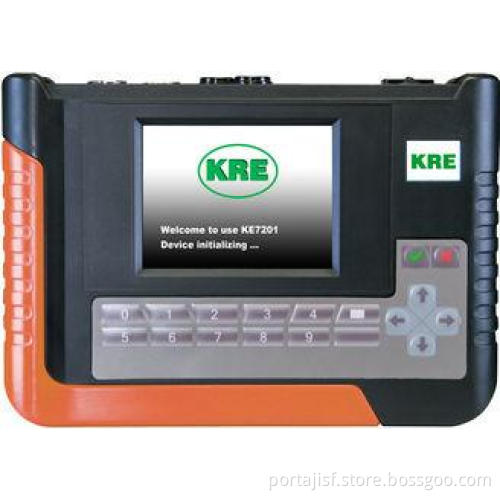

KE7201 portable single phase standard meter is used for the field test of the single phase energy meters and electrical parameters of the circuit by electric power companies, meter manufacturing companies and institutes of metrology.
Highlight:
- Current measure with clamp CT
- Display vector diagram
- Display waveform of voltage and current
- Analyze and display 2nd – 51st harmonic of voltage and current at real time
- Energy accumulating test (Dial test)
- Test ratio of current transformer in low voltage circuit
- Real time clock, accurate record testing time
- Store, browse and transfer measured data
- Real-time measured data by PC, and download calibration parameter
- Two kinds of power supply way: external AC power and voltage test lead power
- Support the barcode scanner to input number of energy meter automatically (optional)
Main specifications:
|
|
KE7201-0.3 |
|
Voltage measurement |
|
|
Voltage range |
20V – 420V |
|
Accuracy |
±0.1% |
|
Harmonics |
2nd- 51st |
|
Current measurement ( clamp input) |
|
|
Current range |
5A,100A,500A,1000A |
|
Accuracy |
±0.3% (5A,100A),±0.5% (others) |
|
Harmonics |
2nd- 51st |
|
Power measurement |
|
|
Active power |
±0.3% (5A,100A),±0.5% (others) |
|
Reactive power |
±0.5% |
|
Energy measurement |
|
|
Active energy |
±0.3% (5A,100A),±0.5% (others) |
|
Reactive energy |
±0.5% |
|
Phase measurement |
|
|
Phase range |
0 -- 360° |
|
Accuracy |
±0.1° |
|
Frequency measurement |
|
|
Frequency range |
45Hz – 65Hz |
|
Accuracy |
±0.05Hz |
|
Pulse output |
|
|
Low frequency output(CL) |
1000imp / kWh |
|
Pulse input |
|
|
Input channel |
1 |
|
Input frequency |
Max.100Hz |
|
Others |
|
|
Power supply |
external power supply (45V –420V) powered by the tested terminal |
|
Dimensions |
190mm×140mm×50mm |
|
Weight |
1.3kg |
