3 Phase Portable Energy Meter Tester With Large Color Display Screen 1000A
- Name: Portble energy meter tester, electric meter tester, electricity meter tester
- Phase: three phase / single phase
- Accuracy Class: ±0.1%
- Usage: Auto Electric meter test and calibration
- Power: Electronic
- Voltage Range: 50V – 480V
- Current Range: 5A,100A / 500A,1000A

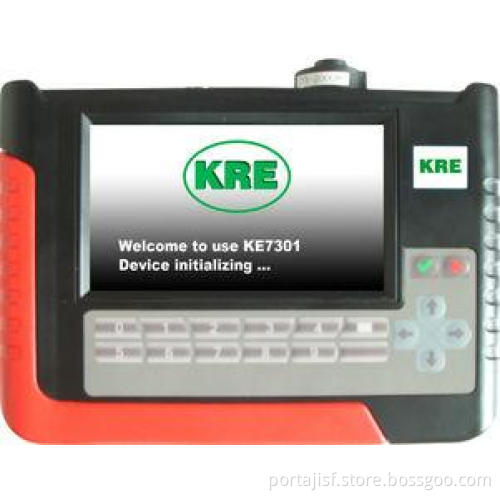

3 Phase Portable Meter Tester With Large Color Display Screen
KE7301 portable three phase standard meter is used for the test of three phase / single phase energy meters under class 0.5 and the inspection of circuit electrical parameters by electric power companies and institutes of metrology.
Highlight:
- Measure all kinds of meter, include single phase (1P2W) meter, three phase three wire meter (3P3W), three phase four wire meter (3P4W) etc
- Current measure with clamp CT two mode
- Measure Vrms, Irms, phase angle, active power, reactive power, apparent power of three phase or single phase
- Measure total active power and total reactive power of three phase;
- Measure phase angle of phase to phase
- Measure frequency of power grid
- Display vector diagram
- Display waveform of voltage and current
- Analyze and display 2nd – 51st harmonic of voltage and current at real time
- Energy accumulating test (Dial test)
- Auto-check external wiring correct or not
- Test ratio of current transformer in low voltage circuit
- Wiring emulation, can simulate all kind of wirings on site without input voltage and current
- Real time clock, accurate record testing time
- Store, browse and transfer measured data
- Real-time measured data by PC, and download calibration parameter
- Two kinds of power supply way: external AC power and voltage test lead power
- Support the barcode scanner to input number of energy meter automatically (option)
Main specifications:
|
|
KE7301-0.3 |
KE7301-0.5 |
|
|
Voltage measurement |
|||
|
Voltage range |
50V – 480V |
||
|
Accuracy |
±0.1% |
||
|
Harmonics |
2nd- 51st |
||
|
Current measurement (clamp CT input) |
|||
|
Current range |
5A,100A |
500A,1000A |
|
|
Accuracy |
±0.3% |
±0.5% |
|
|
Harmonics |
2nd- 51st |
||
|
Power measurement |
|||
|
Active power |
±0.3% |
±0.5% |
|
|
Reactive power |
±0.3% |
±0.5% |
|
|
Energy measurement |
|||
|
Active energy |
±0.3% |
±0.5% |
|
|
Reactive energy |
±0.3% |
±0.5% |
|
|
Phase measurement |
|||
|
Phase range |
0 -- 360° |
||
|
Accuracy |
±0.1° |
||
|
Frequency measurement |
|||
|
Frequency range |
45Hz – 65Hz |
||
|
Accuracy |
±0.05Hz |
||
|
Pulse output |
|||
|
Low frequency output(CL) |
3600imp / kWh |
||
|
Pulse input |
|||
|
Input channel |
1 |
||
|
Input frequency |
Max. 100Hz |
||
|
Others |
|||
|
Power supply |
Powered by external source or tested terminal |
||
|
Dimensions |
190mm×140mm×50mm |
||
|
Weight |
1.3kg |
||
