Rack Mount 12.1" Sunlight Readable LCD Display 800X600 Ind

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China

Product Description

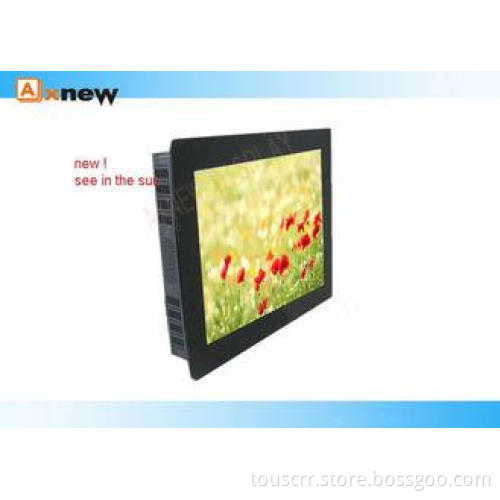

Rack Mount 12.1" Sunlight Readable LCD Display 800X600 Industrial 1000nits Monitors

12.1 inch 4:3 format industrial LCD monitor with VGA input Rugged front bezel with Vesa Mounting design. such as Automatic equipments, Gas station, advertising embedded system etc.

Quick Details:

Model: AXD-12OPIPN1P1-VH	Screen Size:12’’
Screen format: 4:3	Display Resolution(pixel):800X600
Contrast Ratio:700:1	Brightness:1000cd/m^2
Storage temperature : -30℃~85℃	Input signal: VGA DVI
Power Input: AC100~240 V/DC 12V	Product status: Stock

Features and Advantages

1.New and Industrial A grade perfect panels with stable supply

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing

4. Industrial design to protect the LCD screen, mounting on the outdoor application

5. VGA DVI interfaces

Display Specifications
Display	12.1" Color TFT Industrial High Brightness Monitor
Model Name	AXD-12OPIPN1P1-VH
Active Display Area (mm)	246 (H)x184.5(V)
Pixel Pitch (mm)	0.3075(H)x0.3075(V)
Resolution (Pixel)	SVGA (800X600) 262K/16.2M Color
Brightness (CD/m^2)	1000cd/m^2
Contrast Ratio	700:1
Viewing Angle (CR >=10)	160/140
Power consumption	25W typical, normal operation
Touch Screen	Resistive ;IR Touch ;RS232/USB(Optional)
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D(Optional)
Power Input	DC 12V,4A 48W
Mechanical Specifications
Construction	Aluminum front bezel &Black Color
Dimensions	351.0 x 265.0x 56.0(mm)
Mounting	Embedded ,Wall Mounting Optional
Power source	AC 100~240V/ 12V DC
Environment Specifications
Operating Temperature	-30~80℃
Storage Temperature	-30~85℃
Rating	Facilitate installation of the demolition,solid portfolio
Ordering Information	12.1” IP High Brightness Monitor with VGA input and power adapter
