8" TFT Backlight Resistive Touchscreen Embedded Lcd Display
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

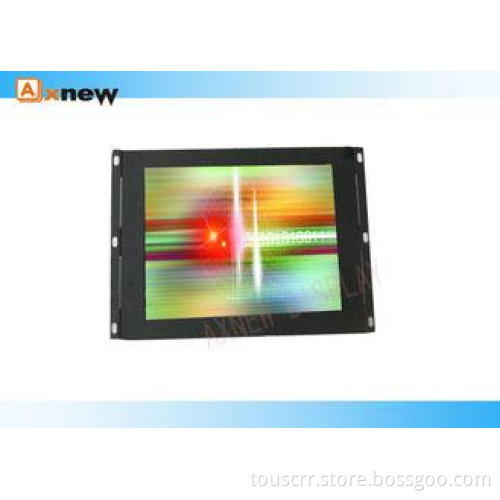

8" TFT Backlight Resistive Touch LCD Monitor 800x600 For Outdoor Advertising
8 inch touch LCD with open frame VGA signal and LED backlight, Resistive touch screen small size LCD ,
used for Automatic equipments, Advertising , vending embedded system etc.
Quick Details:
|
Model:AXD-08OPN1P2-T1 |
Screen Size:8'' |
|
Screen format: 4:3 |
Display Resolution(pixel):800x600 |
|
Contrast Ratio:500:1 |
Brightness: 250cd/m^2 |
|
Storage temperature : 20℃~80℃ |
Input signal: VGA only |
|
Power Input: AC100~240 V/DC 12V |
Product status: Stock |
Features and Advantages
1.New and A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame with front panel frame design on the surface, rugged mounted frame to protect the LCD screen
5. VGA interfaces ;USB interface for touch
6. 8 inch touch lcd for Automatic , kiosks, application control , advertising player ,campus and industrial
terminals etc
Specifications datasheet
|
LCD monitor information |
|
|
Model Number |
AXD-08OPN1P2-T1 ( VGA) |
|
|
8’’ Touch LCD display |
|
Type |
8 “ TFT Active Matrix LCD with LED Backlight |
|
Active Display Area(mm) |
162.0(H)x121.5(V) |
|
Pixel Pitch(mm) |
0.213(H)x0.213(V) |
|
Resolution |
800 x 600, up to 1024X768 |
|
Contrast Ratio |
500:1 (typ.) |
|
Display Color |
16.7 M colors |
|
Brightness |
250(Typ) |
|
Viewing Angles |
140(H);120(V) |
|
Response Time |
10ms/15ms |
|
Environmental Temperature |
|
|
Operating Temperature |
-10℃~70℃ |
|
Storage Temperature |
-20℃~80℃ |
|
Signal Input |
|
|
PC |
RGB analog VGA |
|
RGB Frequency |
H:31.5~38kHz, V:50~60Hz |
|
Power Specification |
|
|
Voltage Consumption |
AC 100~240V,Universal,±10% ; AC/DC 12V4A |
|
|
3.3W typical, normal operation |
|
Touch Screen Optional |
Resistive Touch |
|
Resistive touch panel |
4 wire resistive touch glass |
|
Touch interface |
USB |
|
Transmittance |
>=85% |
|
Input voltage |
less than 10V |
|
working temperature |
-10℃~65℃ |
|
touch kits |
>=1,000,000 times in one position |
|
Dimensions |
|
|
Construction |
Rugged chassis & Black Color |
|
Holes fixings |
Vesa mounting 75x75, Right Left fixing holes |
|
Mechanical dimensions |
223.0 x 158.0x 30.0 (mm) |
|
Drawings |
Please contact us for details |
Packaging & Delivery
|
Packing details |
1x 8 inch Industrial Touch Screen Monitor; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments; 15 working days for order production |
