P20mm SMD 5050 Background Curtain Stage LED Screens Display
Applications:

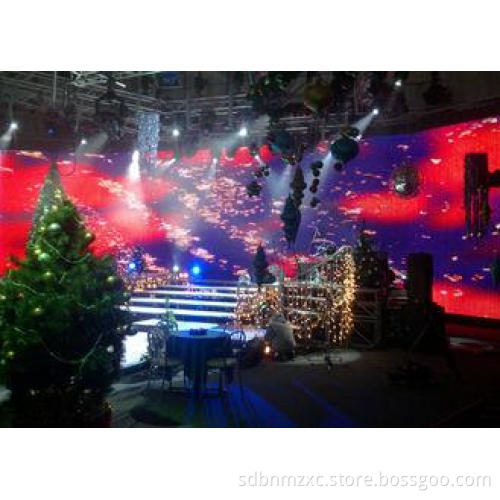

This kind of indoorStage LED Screen is applied for concert, cinema, show, fashion, TV station, and relative activities.
Application Areas :
·---led mesh, led curtain screen, stage led screen, rental led screen
·---Fashion shows, sports halls, fields, playgrounds.
·---Cinema led screen, stage background led screen.
·---Show-business, concerts, festivals, and other public events stage led display screen.
Specifications:
|
SMD 5050 Stage LED Screen/ LED Mesh/ LED Curtain |
||||
|
Module |
Pitch/mm |
p20 |
p31.25 |
p37.5 |
|
Module size/mm |
640x640 |
750x750 |
900x900 |
|
|
Density of pixel/(dots/m2) |
2, 500 |
1, 024 |
711 |
|
|
Resolution of module |
32X32 |
24X24 |
24X24 |
|
|
Main |
Optimum viewing distance |
≥17 |
≥25 |
≥30 |
|
View angle / ° |
140 H, 90 V |
140 H, 90 V |
140 H, 90 V |
|
|
Average power consumption/W/module |
100 |
60 |
60 |
|
|
Max power consumption/W/module |
190 |
120 |
120 |
|
|
Driving method |
Static constant current |
|||
|
Frame frequency / Hz/S |
≥60 |
≥60 |
≥60 |
|
|
Refresh rate Hz/S |
≥600 |
≥600 |
≥600 |
|
|
Luminance of white balance |
≥4000 nits |
≥3000 nits |
≥3000 nits |
|
|
Operation of Environmental Temperature/℃ |
below 30 to above 50 |
|||
|
IP rating |
Front, IP65;Rear, IP43 |
|||
|
Working vlotage |
110-220 VAC/+/- 10% |
|||
|
Grey scale/color |
displaying colors≥16.7M(synchronized) |
|||
|
Brightness adjustment |
256 levels of each color(manually), 8 levels of each color(automatically) |
|||
|
Input signal |
RF, S-Video, RGB, RGBH, YUV, YC&Composition , etc |
|||
|
Control system |
linsn(sending card, receiving cards and Hubs) |
|||
|
Average of non-failure life |
＞5, 000h |
|||
|
Life span |
＞100, 000h |
|||
|
Functionaless dot rate |
＜0.0001 |
|||
Competitive Advantage:
1. Quality stability and reliability;
2. High refresh rate and low power consumption;
3. Special design or OEM design for cabinet
4. Two years warranty
