Grade 1 Welded Titanium Tube 0.3mm - 20mm WT , Medical Titanium Pipe
Quick Details:
1.standard: ASTM 337/338/861/862 --
2.Grade:Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12
3.OD:2.0-219mm,WT: 0.3--20mm
4.ISO 9001-,SGS
1>Small titanium pipe
1.standard: AST cp titanium pipe M 337/338/861/862 --
2.Grade:Gr1, Seamless Gr2,Gr3,Gr5,Gr7,Gr9,Gr12
3.OD:2. 0-219mm,WT: 0.3--20mm
4.ISO 9001-,SGS
2>Product introduce

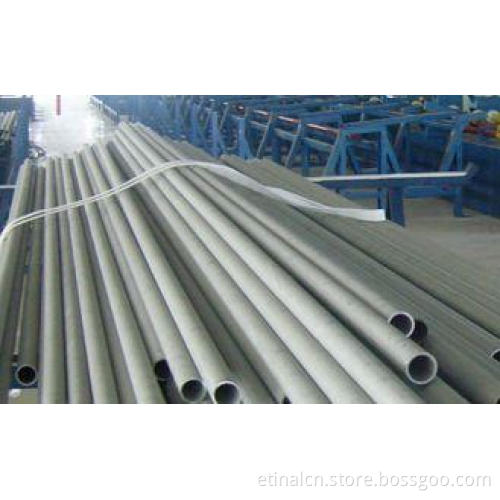

Titanium tube
|
Grade |
ASTM: Gr1,Gr2,Gr3,Gr4,Gr5,Ti6Al4V ELI, Gr7,Gr9,Gr11,Gr12,Gr23 |
|
Standard |
ASTM B337,ASTM B338,ASTM F136,ASTM F67,ASTMB861 |
|
Size |
Dia0.8-114mm x L ≤15000mm |
|
Applications |
Medical, aviation, oceanic industries, petrochemical engineering, military, autocar,power plant and so on. |
|
Parameter |
titanium tube of chemical requirements titanium tube of tensile requirements |
Table 1 The Tensile Properties of the Titanium tube
|
grade |
Tensile strength(min) |
Yeild strength(min) |
Elongation (%) |
||
|
ksi |
MPa |
ksi |
MPa |
||
|
1 |
35 |
240 |
20 |
138 |
24 |
|
2 |
50 |
345 |
40 |
275 |
20 |
|
5 |
130 |
895 |
120 |
828 |
10 |
|
7 |
50 |
345 |
40 |
275 |
20 |
|
9 |
90 |
620 |
70 |
438 |
15 |
|
12 |
70 |
438 |
50 |
345 |
18 |
Table 2 Permissible Variations in Outside Dimensions Based on Individual Measurements
|
Outside Diameter (mm) |
Diameter Tolerance (mm) |
Permissible VariationsB in Wall Thickness, t, % |
|
(25.4), excl |
±0.102 |
±10 |
|
(25.4 to 38.1), excl |
±0.127 |
±10 |
|
(38.1 to 50.8), excl |
±0.152 |
±10 |
|
(50.8 to 63.5), excl |
±0.178 |
±10 |
|
(63.5 to 88.9), excl |
±0.254 |
±10 |
Table 3 The Main Products
|
Product name |
external diameter (mm) |
Wall thickness(mm) |
length(m) |
Supply capacity per month(m) |
|
Small diameter seamless titanium tube |
Φ2~Φ6.5 |
0.2~0.5 |
≤10 |
100000 |
|
Small diameter seamless titanium tube |
Φ7~Φ9.8 |
0.3~0.8 |
≤10 |
100000 |
|
Small diameter seamless titanium tube |
Φ6~Φ7.5 |
1.5~2 |
≤10 |
80000 |
|
Small diameter seamless titanium tube |
Φ8~Φ12.7 |
1~3 |
≤10 |
50000 |
|
Thin wall seamless titanium tube |
Φ15.88~Φ50.8 |
0.3~0.89 |
≤17 |
20t |
|
Fin special seamless titanium tube |
Φ19.05~Φ50.8 |
1.24~3 |
≤17 |
50t |
Applications:
Because of its high tensile strength - density ratio, excellent corrosion resistance , anti-fatigue, anti-crack resistance, and it can withstand moderately high temperatures, titanium alloys are used in aircraft, armor deposited board, naval ships, spacecraft and missiles
Specifications:
1>Production technology
Process (1) : Titanium Sponge----Voltage----Melting----Titanium Ingots----Forging----Plate Billet----Hot-rolled----Titanium Belt----Welding----Welding Tube
Process (2) : Titanium Sponge----Voltage----Melting----Titanium Ingots----Forging----Bar----Billet----Extrusion----Rolling----Straightening----Seamless Tube
2> Featrues of the product
1.Low Density and High Specificate Strength
2.Excellent Corrosion Resistance
3.Good resistance to effect of heat
4.Excellent Bearing to cryogenic property
5.Nonmagnetic and Non-toxic
6.Good thermal properties
3>Application
Because of its high tensile strength - density ratio, excellent corrosion resistance , anti-fatigue, anti-crack resistance, and it can withstand moderately high temperatures, titanium alloys are used in aircraft, armor deposited board, naval ships, spacecraft and missiles
4>Packing and delivering
Package: Plastic bags and form paper as inside,Wooden case as outside
Shipping Terms: We offer air shipping(Like DHL,UPS,Fedex,TNT or plain air shipping) and shipping by sea.
All will be decided by your quantity.Shipping cost and shipping speed are
the primary thing when we considering shipping.
5>Our service
a.Reply your in inquiry within 24 working hours.
b.Customized design is available, OEM
