LED Low Bay Lights 120W
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | ShenZhen ,China(Mainland) |
|---|

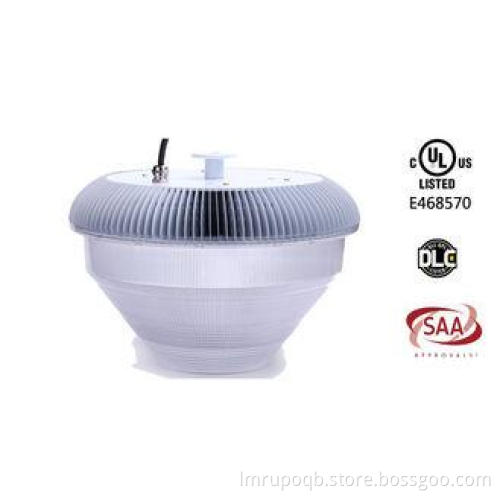

120W LED Parking Garage Light , Supporting The Motion Sensor , Energy Saving
Quick Detail:
- 120W Led motion sensor low bay light
- LED Chip Source: Philips Lumileds LED
- LED Driver:MEANWELL Driver
- Input voltage:AC100-277V
- Luminous Flux:5100lm
- Color Temperature: 3000K/4000k/5000K/6500k
- LED Brightness Decay: <5%/6000 hrs
Description:
- Philips Lumileds LED, high luminous efficiency and long life.
- MeanWell High efficiency LED Driver, the wide range input voltage AC100-277V;
- Fins cooling design, better cooling, light quality, LED Tj < 85℃.
- Excellent optical design, greatly improve the light utilization and evenness.
- Dimmable Control gear, Energy-saving, convenient and user-friendly
Product Applications:
UL LED LowBay Light series can be widely used in indoor or half outdoor lighting, like Indoor parking, mechanical or electronic processing workshops, storage warehouses, steel mills, gas stations, toll booth, waiting rooms, the platforms of railway station etc.
Structure Features:
1. Shell materials: 1070 Aluminum & PC
2. Color: Black or White
3. Net weight:3.8Kg
4. Unit:mm
Specifications:
| Type | UL-LB12W27-xxK | ||
| Power | 120W | Lighting Angle | 160° |
| Input Voltage | AC100-277V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.95 | Working Life | >50000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30 - +40℃ |
|
Luminous Flux Based 5000K |
10400Lm | Storage Temperature | -40 -+80℃ |
| Color Temperature | 3000K/4000k/5000K/6500k | Protection Level | Wet Location/IP65 |
| CRI | Ra>75 | Cable | 3 core,18AWG |
Technical Parameter(Dimmable Control Gear):
| Type | UL-LB12W27-xxK-D | ||
| Power | 120W | Lighting Angle | 160° |
| Input Voltage | AC100-277V | LED Brightness Decay | <5%/6000 hrs |
| PF | >0.95 | Working Life | >50000 hrs |
| Driver Efficiency | >90% | Working Temperature | -30 - +40℃ |
| Luminous Flux | 10400Lm | Storage Temperature | -40 -+80℃ |
| Color Temperature | 3000K/4000k/5000K/6500k | Protection Level | Damp Location/IP54 |
| CRI | Ra>75 | Cable | 3 core,18AWG(1.5m) |
| Control Gear Power | 0.5/1W | Nominal Load | 1000W |
| Installation Height | 12m(MAX) | Induction distance | 0.5-8m |
| Induction angle | ≤170° | Time-delay | 10s~30min |
Photometry:
Illuminance at a Distance:
Competitive advantages:
- We can design and layout your fixtures according to the application scene.
- can support the motion sensor .
- 5-year warranty.
- Using Heat Pipe and cooling fins for 1070 aluminium alloy.
- 3 days for sample,7-15days for products order.
Montion Sensor :
