High Resolution Advertising LED Display Pixel 3.9mm Full Color
Description:
IDsn3D is Glux updated 3.9mm high resolution best image indoor LED display.
1. Carbon Fiber materials for super light and thin structure. Latest technology, only weigh 17.6kg per square meter.
2. Indoor LED: deepest blackness levels and light absorbing techniques forming best high definition image
3. Angled edge structure for max 90 degree curved assembly, can support flixible curved set up.
4. Glux fast-assembly mechanism = compatible to all other Glux LED Screens, save a lot of assembly labor cost.
5. Easy & flexible installation allows for complex setups
6. Module measurements:0.5*0.5m, different dimension screen installation available
Applicantion:

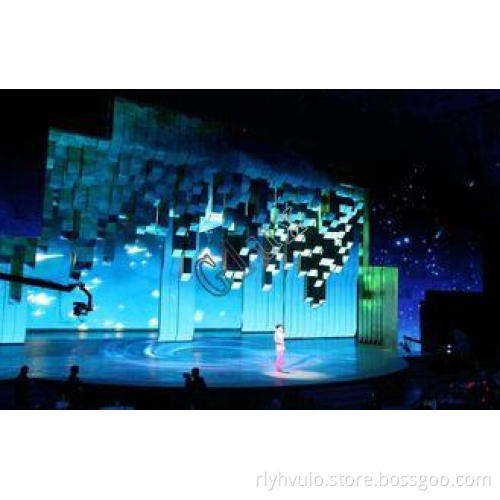

Entertainment, events, shopping center,exhibitions, TV shows, car shows, fashion shows, concerts, museums, etc
Specifications:
| Item No. | IDsn3D |
| Pixel Pitch(mm) | 3.9 |
| Pixel Density(dots/m2) | 65536 |
| Brightness(cd/m2) | >1000 |
| Color Temperature (after calibration)K | 6500 |
| Module Size(W*H*D)(mm) | 500*500*60 |
| Weight(kg/Panel) | 4.4 |
| Weight(kg/m2) | 17.6 |
| LED Type | 2121/2724Black |
| LED Chip | Epistar |
| Horizontal/Vertical Viewing Angle(º) | H160º/V160º |
| Recommended Viewing Distance(m) | ≥4 |
| Contrast | 7500:1 |
| Refresh Rate(Hz) | 2000 |
| Grey Scale(bit) | R/G/B 16bit |
| Frame Rate(Hz) | 50/60 |
| Life Time(H) | ≥50000 |
| Protection | Indoor |
| Power Supply | Singular Power Supply |
| Working Voltage(V) | AC 110-240 |
| Max Power Consumption(W/M2) | 540 |
| Avr Power Consumption (W/M2) | 180 |
| Working Temperature | -25-60℃ |
| Working Humidity | 10%-95% |
| Drive Mode | 1/16 |
| Cabinet Material | Carbon fiber |
| Control Input | DVI/HDMI/HDSDI |
| Certification | CE/FCC/TUV |
| Max Hanging(Vertical) | 1400kg |
Feature Advantage & Competitive Advantage:
1.Black panel LEDs and a light absorbing mask
2.Usage Status Display
3.Protective Buffer
4.NEUTRIK Connector & LAPP Cable (made in Germany)
5.Test Button
6.45 Degree Curved Frame for 90 Degree Installation
Tag: video, graphics, animation
