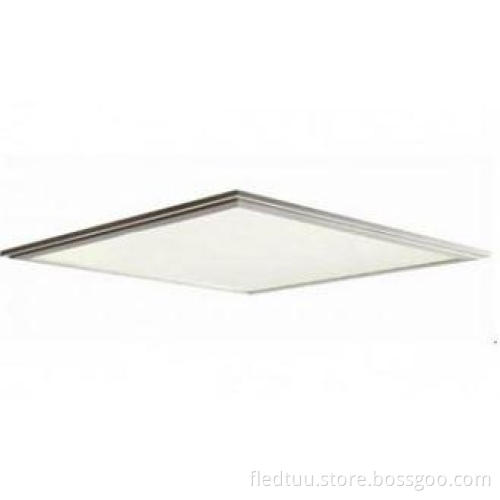

Ultra thin 1600lumen 20W SMD3014 LED Flat Panel Lights 300*300mm , CRI80
Quick Detail:
1) Power:20W
2) Size : 300*300*9.8mm
3) LED Type:SMD3014*154pcs
4) Voltage : AC85-265V
5) Lumen flux: 1600±50lm
6) CCT:2800K-3300K 4000K-4500K 5500K-6500K
7) Certificate : CE , RoHS
8) CRI: ≥80
9) Lifespan : 50000hrs
10) Warranty : 2-3 years
Description:
Evenly lined with high-power LEDs to grant optimal illumination
High light output at a reduced energy consumption of up to 50%
Over 50,000 hours of life expectancy
Wide beam angle with even light distribution
Minimalist & stylish design
No start-up time, no flickering, no humming
High efficiency (95%) constant current driver with built in overheat protection that remains stable over a wide range of input voltages
Independent LED circuit to prevent complete blackout in case an LED fails
Technical Specifications:
|
Model: |
GEL-FP-20W-3030-ECO |
|
Shade Dimension: |
300*300*9.8mm |
|
Rated Power: |
20W |
|
LED: |
3014 SMD*154pcs |
|
Frequency range |
60Hz-70Hz |
|
Input Voltage & Frequency: |
AC85-265V |
|
Power factor: |
0.95 |
|
Beam Angle: |
120D |
|
Color Rendering Index: |
≥80 |
|
Color Temperture: |
2800K-3300K 4000K-4500K 5500K-6500K |
|
Working Temperature: |
-20-45℃ |
|
Luminous Efficiency: |
85lm/w |
Features of Product:
1) Leading power source design and overlong lifespan.
2) There is no mercury&lead,etc.harmful substance which is bad for environment.
3) It is energy saving, environmental protection and high brightness.And it can save 65% electricity
compared with traditional grid lamp.
4) It can work instantly without flash,stridor and glare.
5) It won't be obstructed by wireless.
6) It is without infrared, ultraviolet and no heating effect.
7) It is ultra-thin & ultra light with fine circuit design.
Single dead LED won't affect overall lighting effect and lifespan.
8) Side lighting is homogeneous & soft and comfortable&bright.It can alleviate eyes' fatigue with
wider lighting angle.
9) Its appearance is concise&vogue,pretty&elegant and never unfading.
10) Fast&convenient installation.
11) The constant-current drive can still guarantee the normal operation of panel lamp during
unstable voltage.
Certificate:
Light Source Test Report:
Packing:
1pcs/inner box , 10pcs/carton
Production view :
Applications of Product:
Widely used in offices , supermarket , hall , families and other indoor use
Installation:
Tag: 20W led panel light, 300*300mm led panel, 30*30cm panel lights, 20W led panel light manufactory, 20W led panel
