OpenWRT VPN WiFi HSUPA / GPRS / LTE Industrial 4G Router 15
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
OpenWRT VPN Wireless LTE Industrial 4G Router Detachable Antenna H860t
Routers are normally researched and developed by SDK and OpenWRT / DDWRT. If under SDK, it will not open the full source codes, so users sometimes need source codes to be open, which leads the OpenWRT and DDWRT. With OpenWRT, users can develop and program the features and dedicated function what they need for their application and solutions.
H860 is with OpenWRT, which is with strong hardware.
Description Of H860t LTE Industrial 4G Routers
1. The H860 series industrial 4G Router is an OpenWRT version router based on Linux OS, which is designed for establish a 2G/3G/4G cellular and WiFi wireless network and share a cellular broad band internet or private network connection for wireless Machine-to-Machine or SOHO internet sharing. H860 is a smart ROOter OpenWRT routers using USB 3G & 4G modems.
2. Target on:
Rapid development and support of new features;
Support the latest 3G and 4G USB modems. First to market.;
Support Cat 3/ Cat 4 modem speeds;
Support a variety of readily available routers;
Reliable, low latency 24/7 mobile data connection;
Detailed real-time network connection information;
Tools to configure the connection band and channel;
An AT command window;
3. Hot Spot of H860t 4G Router
1) OpenWRT version. Support firmware development by users;
2) One line WAN and one Cellular WAN. Built-in 4G LTE industrial cellular modules, insert SIM/UIM card to work directly;
3) Built-in SIM/UIM card slot;
4) 4G LTE/3G/2G, fixed line broadband connections and WiFi Client failover;
5) Easy to management with GUI Web, Telnet SSH CLI
6) 4 LAN RJ45 port, 1 WAN RJ45 port, WiFi option;
7) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)
8) Built-in watch dog, keep alive, etc.
Specifications for H860t 4G Router
|
Wireless Cellular |
|
|
Compatible Mobile Networks |
4G LTE (FDD/TDD) Back compatible to 3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+); 2G GSM EDGE/GPRS CDMA1x, CDMA2000 EVDO Rev 0, Rev A, Rev B TD-SCDMA |
|
Cellular Frequency |
4G FDD LTE: Band 1--2100Mhz Band 2--1900Mhz Band 3--1800Mhz Band 4—AWS(1700/2100Mhz) Band 5--850Mhz Band 7--2600MHz Band 8--900Mhz Band 12--700Mhz Band 13--700(B13)Mhz Band 17--700(B17)/AWS Band 19—800Mhz Band 20--DD800Mhz Band 21 Band 25 –1900Mhz G Block Band 31– 450Mhz
4G TDD LTE (TD-LTE): Band 41 – 2500/2600Mhz Band 40 -- 2300Mhz Band 39 – 1900Mhz Band 38 -- 2600Mhz Other TDD band…
UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
3G TD-SCDMA: 2010~2025MHz/1880~1920MHz
Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz;
CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;
Notes: There are many different band and frequencies for 4G LTE. Please confirm the detailed band and frequency with your carriers before order. |
|
Bandwidth |
FDD LTE: 100Mbps downlink, 50Mbps uplink;
DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps; HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps;
EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps;
CDMA1x: Downlink/Uplink 153.6kbps; CDMA EVDO: Rev O: 2.4Mbps downlink, 153.6kbps uplink
3G TD-SCDMA: 2.8Mbps
Notes: the bandwidth is peak value. Real value depends on carrier network support. |
|
Network and Band Lock Feature (Option) |
Default is unlocked, can use this feature to lock |
|
Main Features and Performance |
|
|
USB Host |
No |
|
GPS (Option) |
GPS feature option |
|
VPN |
IPSec, OpenVPN |
|
OpenWRT |
Yes |
|
Route |
Static Route; |
|
Wi-Fi |
802.11b/g, 802.11n, 802.11ac; Can choose 54Mbps/150Mbps/300Mbps/450Mhz.
Frequency 2.4Ghz or 5.8Ghz or 2.4Ghz+5.8Ghz. Support Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users |
|
Firmware update |
Support flash new firmware image |
|
Syslog |
System log, Kernel log |
|
NTP |
Yes |
|
Scheduled Tasks |
Yes |
|
Protocol |
|
|
Protocol support |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, SNMP, RIP |
|
Security |
|
|
Firewall |
support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
|
Advanced Firewall Features |
Network Address Translation (NAT) Stateful Packet Inspection (SPI) VPN Pass-through |
|
Media Access Control |
CSMA/CA with ACK |
|
Certifications |
REDIUS Client |
|
Interface |
|
|
LAN/WAN |
4X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) |
|
Antenna |
1 or 2 antenna for Wi-Fi (detachable, SMA interface); 1 or 2 antenna for Cellular (detachable, SMA interface); 1 antenna for GPS (detachable, SMA interface) |
|
Led |
PWR*1 SYS*1 Cell*1 WAN*1 LAN (10/100M) 1, 2, 3, 4 WiFi*1 |
|
Button |
Reset |
|
Console |
1 console port, DB9 |
|
Serial port |
No |
|
IO Port (option) |
2 |
|
Management |
Web/Telnet/CLI/SSH, support remote management |
|
At command |
Supported |
|
UIM/SIM Card Slot |
Support 1.8V/3V UIM/SIM cards, one sim card slot |
|
DC Jack |
2.1mm DC jack * 1 |
|
Power |
|
|
Power supply |
DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option |
|
Current |
Idle: about 120mA@12VDC Communication: about 270mA@12VDC |
|
Software |
|
|
Device Management |
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) |
|
Minimum System Requirements |
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card |
|
Physical |
|
|
Operating Temperature |
Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C |
|
Humidity |
95% Maximum (Non-condensing) |
|
Dimensions |
PCBA: 156mm x 104mm x 20mm With case: 168mm x 104mm x 25mm |
|
Weight |
455g (not including the antenna) |
|
Color |
Metal Gray-Black, OEM is available |
|
Others |
|
|
Warranty |
1 Year default. Option extends to 5 years maximum. |
|
Package Contents |
H860 Series Wireless 4G Router Ethernet Cable Power Adapter Antenna Others depends on option features |
Applications
- Remote Data Monitor and Control
- Power distribution network supervision
- Central heating system supervision
- Weather station data transmission
- Hydrologic data acquisition
- Vending machine
- Telemetry, SCADA
- Vehicle logistics and diagnostics controlling
- Parking meter and Taxi Monitor
- Telecom equipment supervision (Mobile base station, microwave or optical relay station)
- CCTV, security surveillance
- Water, gas and oil flow metering and schedule
- AMR (automatic meter reading)
- Power station monitoring and control
- Remote POS (point of sale) terminals, ATM,
- Traffic signals monitor and control, Traffic info guidance
- Oil field, weather forecast, environmental protection, street lamp monitoring and control
- Early Warning of Mountain Torrent
- Fleet management
Typical Application Diagram for H860t Industrial 4G Router

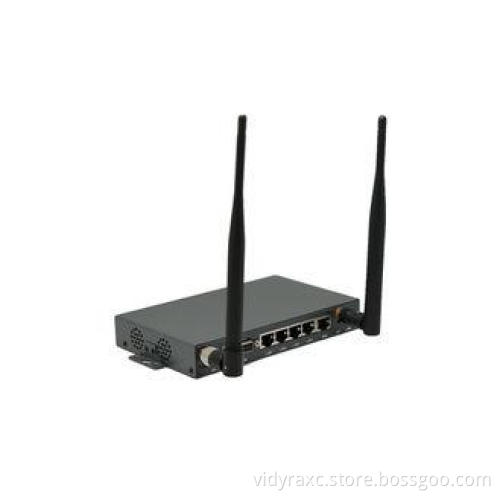

More Pictures for H860t LTE Industrial 4G Router
