21Mbps UMTS WCDMA 3G Mobile Broadband Wireless Router With
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
External Detachable Antenna 3G Router OpenWRT - 3G HSDPA HSUPA Router
H850 router key points:
Remote Web / Telnet CLI SSH;
Keep alive and schedule;
Cellular Mobile 2G / 3G / HSPA+;
OpenWRT version, DDWRT option;
VPN, DDNS, Dynamic Route, NAT, NAPT, DMZ;
Serial RS232 or RS485;
GPS option;
Digital I/O ports;
Description
1. Data speed
Peak download: 21Mbps, Peak upload: 5.76Mbps;
2. Supported networks and bands,
3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+):
850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
2G GSM/GPRS/EDGE Quad-band 850/900/1800/1900Mhz;
3. Hot Spot of H850p Industrial 3G Router
1) Built-in SIM/UIM card slot;
2) HSPA+ / 3G / 2G, fixed line broadband connections and WiFi Client failover;
3) OpenWRT version in Linux. Users can load developped firmware freely;
4) One line WAN and one Cellular WAN. Built-in 4G LTE industrial cellular modules, insert SIM/UIM card to work directly;
5) Easy to management with GUI Web, Telnet SSH CLI
6) 1 LAN RJ45 port, 1 WAN RJ45 port, WiFi option;
7) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)
8) Built-in watch dog, keep alive, etc.
Specifications for H850p OpenWRT 3G Router
|
Wireless Cellular |
|
|
Bandwidth |
HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps;
EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps;
Notes: the bandwidth is peak value. Real value depends on carrier network support. |
|
Network and Band Lock Feature (Option) |
Default is unlocked, can use this feature to lock |
|
Main Features and Performance |
|
|
USB Host |
No |
|
GPS (Option) |
GPS feature option |
|
VPN |
IPSec, OpenVPN |
|
OpenWRT |
Yes |
|
Route |
Static Route; |
|
Wi-Fi |
802.11b/g, 802.11n, 802.11ac; Can choose 54Mbps/150Mbps/300Mbps/450Mhz.
Frequency 2.4Ghz or 5.8Ghz or 2.4Ghz+5.8Ghz. Support Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users |
|
Firmware update |
Support flash new firmware image |
|
Syslog |
System log, Kernel log |
|
NTP |
Yes |
|
Scheduled Tasks |
Yes |
|
Protocol |
|
|
Protocol support |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, SNMP, RIP |
|
Security |
|
|
Firewall |
support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
|
Advanced Firewall Features |
Network Address Translation (NAT) Stateful Packet Inspection (SPI) VPN Pass-through |
|
Media Access Control |
CSMA/CA with ACK |
|
Certifications |
REDIUS Client |
|
Interface |
|
|
LAN/WAN |
1X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) |
|
Antenna |
1 or 2 antenna for Wi-Fi (detachable, SMA interface); 1 or 2 antenna for Cellular (detachable, SMA interface); 1 antenna for GPS (detachable, SMA interface) |
|
Led |
PWR*1 SYS*1 Cell*1 WAN*1 LAN (10/100M)*1 WiFi*1 |
|
Button |
Reset |
|
Console |
1 console port, Terminal block |
|
Serial port |
No |
|
IO Port (option) |
3 |
|
Management |
Web/Telnet/CLI/SSH, support remote management |
|
At command |
Supported |
|
UIM/SIM Card Slot |
Support 1.8V/3V UIM/SIM cards, one sim card slot |
|
DC Jack |
2.1mm DC jack * 1 |
|
Power |
|
|
Power supply |
DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option |
|
Current |
Idle: about 120mA@12VDC Communication: about 270mA@12VDC |
|
Software |
|
|
Device Management |
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) |
|
Minimum System Requirements |
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card |
|
Physical |
|
|
Operating Temperature |
Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C |
|
Humidity |
95% Maximum (Non-condensing) |
|
Dimensions |
PCBA: 90mm x 70mm x 23mm With case: 100mm x 78mm x 26mm |
|
Weight |
375g (not including the antenna) |
|
Color |
Metal Gray-Black, OEM is available |
|
Others |
|
|
Warranty |
1 Year default. Option extends to 5 years maximum. |
|
Package Contents |
H850 Series Wireless 3G Router Ethernet Cable Power Adapter Antenna Others depends on option features |
Applications
- Remote Data Monitor and Control
- CCTV, security surveillance
- Water, gas and oil flow metering and schedule
- AMR (automatic meter reading)
- Power station monitoring and control
- Remote POS (point of sale) terminals, ATM
- Vending machine
- Telemetry, SCADA
- Vehicle logistics and diagnostics controlling
- Parking meter and Taxi Monitor
- Telecom equipment supervision (Mobile base station, microwave or optical relay station)
- Traffic signals monitor and control, Traffic info guidance
- Oil field, weather forecast, environmental protection, street lamp monitoring and control
- Early Warning of Mountain Torrent
- Fleet management
- Power distribution network supervision
- Central heating system supervision
- Weather station data transmission
- Hydrologic data acquisition
Typical Application Diagram for H850p OpenWRT 3G Router

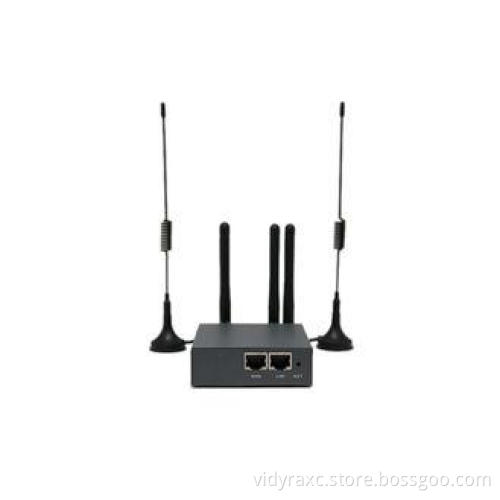

More Pictures for H850p OpenWRT 3G Router
Competitive Advantage of H850 OpenWRT 3G Router
Smart compact size;
With mini PCIe slot for WiFi extention, can use high power WiFi module;
With SIM/UIM card slot;
Replaceable antenna for Cellular and WiFi;
OpenWRT with Linux, freely load developped firmware and software;
High strong alloy metal case;
