2G / 3G RS232 / RS485 RJ45 Etherne Industrial Network Route
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|

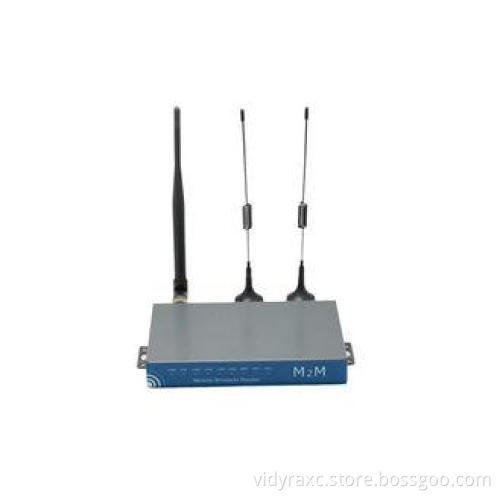

OpenWRT Wireless Industrial 3G Router - E-Lins H860p Cellular Router
H860 router key points:
1 WAN RJ45 + 4 LAN RJ45 Ethernet;
OpenWRT version, DDWRT option;
VPN, DDNS, Dynamic Route, NAT, NAPT, DMZ;
Remote Web / Telnet CLI SSH;
Keep alive and schedule;
Cellular Mobile 2G / 3G;
Serial RS232 or RS485;
GPS option;
Digital I/O ports;
Description
1. The H860 series Cellular Router is an OpenWRT version router, which is designed for establish a 2G/3G cellular and Wi-Fi wireless network and share a cellular broad band Internet connection. The H860 series Cellular Router enables users to quickly create a secure Wi-Fi (802.11 b/g/n) network and provide access to the Internet using a cellular network. By connect to cellular mobile network; an Internet connection can be accessed and shared virtually anywhere within a wireless broadband network.
E-Lins’ mobile data products are widely used in more than 50 countries and regions, and more than twenty industrial fields, such as power control, water schedule, traffic, oil field, weather forecast, environmental protection, street lamp control, post, bank and many other areas.
2. Hot Spot of H860p Industrial 3G Router
1) OpenWRT version. Support firmware development by users;
2) One line WAN and one Cellular WAN. Built-in 3G HSPA+ industrial cellular modules, insert SIM/UIM card to work directly;
3) Built-in SIM/UIM card slot;
4) HSPA+/3G/2G, fixed line broadband connections and WiFi Client failover;
5) Easy to management with GUI Web, Telnet SSH CLI
6) 4 LAN RJ45 port, 1 WAN RJ45 port, WiFi option;
7) VPN supported, DDNS, Dynamic Route, Firewall, NAT/NAPT, DMZ, Digital IO ports, GPS support (option)
8) Built-in watch dog, keep alive, etc.
Specifications for H860p 3G Router
|
Wireless |
|
|
Compatible Mobile Networks |
3G UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+); 2G GSM EDGE/GPRS |
|
Cellular Frequency |
UMTS/HSPA/HSUPA/HSPA/HSPA+ (WCDMA/FDD): 850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;
Quad-band GSM/GPRS/EDGE 850/900/1800/1900Mhz; |
|
Bandwidth |
HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps; HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps; HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps; HSDPA: Downlink 7.2 Mbps, Uplink 384k bps; WCDMA/UMTS: Downlink/Uplink 384 kbps;
EDGE: Downlink 384 kbps, Uplink 118 kbps; GPRS: Downlink 108 kbps, Uplink 42.8 kbps;
Notes: the bandwidth is peak value. Real value depends on carrier network support. |
|
Network and Band Lock Feature (Option) |
Default is unlocked, can use this feature to lock |
|
Main Features and Performance |
|
|
USB Host |
No |
|
GPS (Option) |
GPS feature option |
|
VPN |
IPSec, OpenVPN |
|
OpenWRT |
Yes |
|
Route |
Static Route; |
|
Wi-Fi |
802.11b/g, 802.11n, 802.11ac; Can choose 54Mbps/150Mbps/300Mbps/450Mhz.
Frequency 2.4Ghz or 5.8Ghz or 2.4Ghz+5.8Ghz. Support Access Points, Routers and Gateway Server Applications, wireless up to 254 PC users |
|
Firmware update |
Support flash new firmware image |
|
Syslog |
System log, Kernel log |
|
NTP |
Yes |
|
Scheduled Tasks |
Yes |
|
Protocol |
|
|
Protocol support |
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, NAT, xDSL, NTP, QoS, SNMP, RIP |
|
Security |
|
|
Firewall |
support 64/128 bits WEP, 802.1x, WPA, and WPA2 support WDS support WPA1/2 – PSK support WPA1/2 – 802.1x support EAP – TLS, TTLS, LEAP, PEAP TKIP, AES encryption support access with user name & password. support access control base WAN/LAN interface support access control base source IP address defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc. support PAP & CHAP support IP filtering support content filtering support NAT/NAPT/Port forwarding/DMZ |
|
Advanced Firewall Features |
Network Address Translation (NAT) Stateful Packet Inspection (SPI) VPN Pass-through |
|
Media Access Control |
CSMA/CA with ACK |
|
Certifications |
REDIUS Client |
|
Interface |
|
|
LAN/WAN |
4X 10/100M LAN port (RJ45 interface) 1X 10/100M WAN port (RJ45 interface) |
|
Antenna |
1 or 2 antenna for Wi-Fi (detachable, SMA interface); 1 or 2 antenna for Cellular (detachable, SMA interface); 1 antenna for GPS (detachable, SMA interface) |
|
Led |
PWR*1 SYS*1 Cell*1 WAN*1 LAN (10/100M) 1, 2, 3, 4 WiFi*1 |
|
Button |
Reset |
|
Console |
1 console port, DB9 |
|
Serial port |
No |
|
IO Port (option) |
2 |
|
Management |
Web/Telnet/CLI/SSH, support remote management |
|
At command |
Supported |
|
UIM/SIM Card Slot |
Support 1.8V/3V UIM/SIM cards, one sim card slot |
|
DC Jack |
2.1mm DC jack * 1 |
|
Power |
|
|
Power supply |
DC5V-50V , typical DC 9V1A or 12V1A, 12v CAR USE; DC5V~40V is the default, DC5V~50V is the option |
|
Current |
Idle: about 120mA@12VDC Communication: about 270mA@12VDC |
|
Software |
|
|
Device Management |
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.) |
|
Minimum System Requirements |
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser; Network Interface Card |
|
Physical |
|
|
Operating Temperature |
Storage Temperature: -40 ~ 85°C Working Temperature: -30 ~ 75°C |
|
Humidity |
95% Maximum (Non-condensing) |
|
Dimensions |
PCBA: 156mm x 104mm x 20mm With case: 168mm x 104mm x 25mm |
|
Weight |
455g (not including the antenna) |
|
Color |
Metal Gray-Black, OEM is available |
|
Others |
|
|
Warranty |
1 Year default. Option extends to 5 years maximum. |
|
Package Contents |
H860 Series Wireless 3G Router Ethernet Cable Power Adapter Antenna Others depends on option features |
Applications
- Remote Data Monitor and Control
- CCTV, security surveillance
- Water, gas and oil flow metering and schedule
- AMR (automatic meter reading)
- Power station monitoring and control
- Remote POS (point of sale) terminals, ATM,
- Traffic signals monitor and control, Traffic info guidance
- Oil field, weather forecast, environmental protection, street lamp monitoring and control
- Early Warning of Mountain Torrent
- Fleet management
- Power distribution network supervision
- Central heating system supervision
- Weather station data transmission
- Hydrologic data acquisition
- Vending machine
- Telemetry, SCADA
- Vehicle logistics and diagnostics controlling
- Parking meter and Taxi Monitor
- Telecom equipment supervision (Mobile base station, microwave or optical relay station)
Typical Application Diagram for H860p Industrial 3G Router
More Pictures for H860p Industrial 3G Router
