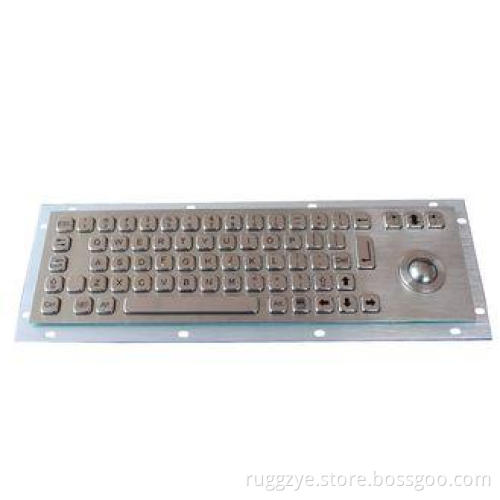

68 keys compact format IP65 static stainless steel ATM keyb

68 keys compact format IP65 static stainless steel keyboard with waterproof

DESCRIPTION:

68 keys compact format IP65 static rated vandal proof stainless steel industrial keyboard with

IP65 static rated 25mm stainless steel mechanical trackball module with 400 DPI resolutions for

easy and accurate cursor position.3 mouse buttons designed for right & left clicking and scrolling

up and down with ball rolling, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast

and accurate data input without any noise, with rear panel mounting solution.

Applications:

This Keyboard is mainly targeted for use for:

A: unsupervised or semi -supervised positions of varied access applications,

B: internet terminals and information kiosks at universities,

C: shopping malls, hotels, airports, railway stations and other public areas,

D: ticket vending machines, gas stations, cash machines (ATMs), Internet public phones etc.

MECHANICAL DATA:

Actuator/keys: 68 keys, super quality SUS304 brushed stainless steel

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille

on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm

for space bar.

Key travel: 2.0mm

Actuation Force: 0.60N+/-0.1N for key 14.0mm x 14.0mm (pressure point ),

1.20N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Switch life: more than 10 million of operations.

Front Plate: 1.50mm thickness super quality brushed stainless steel

Back Plate:3.0mm thickness brushed & oxidized aluminium

Tracker ball: 25.0mm (1.0’) diameter, IP65 static waterproof 400DPI mechanical trackball,

G.W.:1.20KGs
