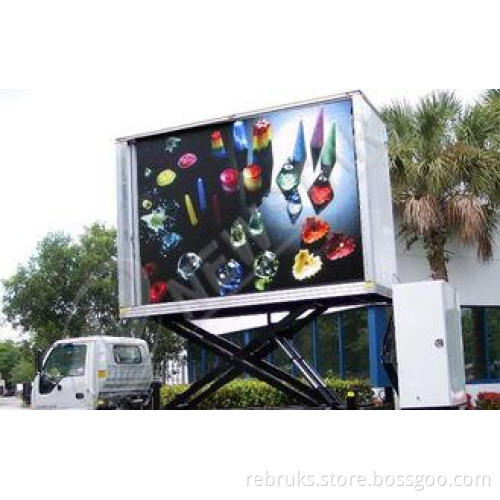

Advertising P16mm Truck Mounted LED Display Panel For Outdo

Get Latest Price

Min. Order:: 1

Min. Order:: 1

Delivery Time:: 30 Days

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China

Product Description

Quick Detail:

1. ≤1mm surface level up, smooth video

2. Perfect quality and stability, 24/7 running

3. IP65 Ruggedness, all-weather qualified

4. 2 years warranty

5. Long lifespan up to 100,000 hours

6. Support any format of video, RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION

Advertising P16mm Truck Mounted LED Display Panel For Outdoor , High Contrast 8000cd/㎡

Description:

1. High viewing angle: 110°(Horizontal )/45°(Vertical )

2. Special Structure design for water-proof, dust-proof, moisture-proof, and anti-static electric

3. High Contrast.The Contrast is above 2000:1, so the viewer can have a wonderful visual

4. Outstanding consistency in color and brightness, no mosaic effects.

Applications:

Commercial advertising: Square, Road side, High way, Airport, Wharf, Hotel, Restaurant etc

Specifications:

1. Outdoor LED Display Technical Parameter

Model No.	NS-OR-DD-P16
Pixel Pitch	16mm
Module Size	256mm×256mm
Module Resolution(dots)	16*16
Panel Size	1024mm×768mm
Panel Resolution(dots)	64×48
Pixel Configuration(RGB)	1R1G1B
Pixel Density(dots/m²)	3906
Brightness(cd/m²)	≥ 8000
Best Viewing Distance(m)	15-300
Max. Power Consumption(W/m²)	1000
Drive Mode	Static
Wavelength	R 620-625 G 520-525 B 470-475
Viewing Angle	110°(H)/45°(V)
Operating Temperature	–20~60°C
Video Frame Rate(Hz)	≥60HZ
Display Refresh Rate(Hz)	≥300HZ
Grey Level(colors)	16.7million
Life Span	≥100,000 hours
Working Voltage	220V±15% OR 110V±15%
Video Signal Input	RF,S-Video, RGB,RGBHV,YUV,YC,COMPOSITION
Control System	LINSN OR DB-STAR

2. Outdoor LED Display Module

Module Size (W*H)	256mm*256mm	Pixel Configuration	1R1G1B
Pixel Pitch	16mm	Resolution (W*H)	16 dots*16 dots
Pixel Density	3906 dots/㎡	LED Type	3mm Oval Lamp

3. Outdoor LED Display Cabinet

Cabinet Size (W*H)	1024mm*768mm	Module Qty	12 pcs
Cabinet Resolution (W*H)	96 dots*64 dots	Cabinet Pixel	6144
Weight	40 kg/ Cabinet	Area	0.6144㎡
Average Power Consumption	350w/㎡	Max Consumption	1000W/m2

4. Methods for Quality Assurance

a. Aging

b. Vibration Testing

5. Factory Equipment

Wave Soldering Conveyor, PC Console, Wave Soldering Machine,
Automatic Glue- pouring Machine, Solder Paste Printing Machine,
Reflow Soldering Machine, Automatic Solder Paste Printing Machine,
Withstand Voltage Tester, Ground Resistance Tester,
Medium-speed Automatic SMT Machine, Super Mute Terminal Machine,
Automatic Wire Stripping Machine, Automatic Optical Inspection (AOI) Equipement.

6. Package

Flight case and Fumigation-Free wooden case

7. Control System Connection

8. Competitive Advantage:

1. Long Life Span > 100,000 hours

2. High Quality and High performance

3. Front/Rear access Available

4. Reasonable Price, Superior Service.

5. Free maintenance service
