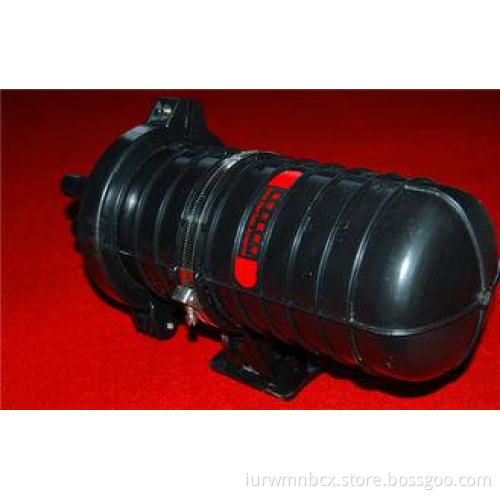

Pole Use Metal Optical Cable Joint Box With Two Inlets / Two Outlets

Quick Detail:

1. ISO 9001:2008

2. Cap-type palstic Joint Box

3. Cap-type Metal Joint Box

4. Long Life Time

5. Fastest Delivery

6. Against rust and corrosion

Description:

Cap-type palstic Joint Box information:

used for splicing of ADSS and OPGW fiber. The maximal capacity is 96 core.Bears the excellence of high mechanical strengh, good airproof performance and excellent corrosion resistance. Having been sealed with sealing ring and silicone, it could be opened, expansed, fixed, and connected repeatedly.The maximal capacity is 144 core. when the microbend fiber loss is not larger than 0.01Db, and the bending radius for fiber is not less than 45mm, it need the special way for immobility, to protect the fiber.

Cap-type Metal Joint Box Specification:

Name	Model	Weight(kg)	Material	Install Location
Cap-type Metal Joint Box for Pole	PJJ N1N2-Dndn-G	6.7	aluminum alloy	for pole
Cap-type Metal Joint Box for Tower	PJJ N1N2-Dndn-T	6.7	aluminum alloy	for tower

Instruction: N1—port no. Max: 5 pcs, N2—core no. of cable. Max: 144 core,

DN—insert dia. of cable, dn—out dia. of cable, G—for pole, T—for tower.

Applications:

1.For ADSS, OPGW, and other cables through joints or branch joints.

2.The overall structure of products with excellent environmental adaptability, reliability, to meet the requirements of optical communication systems.

3.Simple installation makes it easy assembly.

4.Loose fiber disc fiber disc space to be more convenient to have the bending radius of optical fiber, optical fiber connector loss from stress, to ensure the transmission characteristics of optical fiber.

Specifications:

Type	Property	Type	Property
OJT 20 12	Two-way 2E 12 F.O.	HJT 20 12	Two-way 2E 12 F.O.
OJT 20 24	Two-way 2E 24 F.O.	HJT 20 24	Two-way 2E 24 F.O.
OJT 20 36	Two-way 2E 36 F.O.	HJT 20 36	Two-way 2E 36 F.O.
OJT 20 48	Two-way 2E 48 F.O.	HJT 20 48	Two-way 2E 48 F.O.
OJT 20 60	Two-way 2E 60 F.O.	HJT 20 60	Two-way 2E 60 F.O.
OJT 20 72	Two-way 2E 72 F.O.	HJT 20 72	Two-way 2E 72 F.O.
OJT 30 12	Three-way 3E 12 F.O.	HJT 30 12	Three-way 3E 12 F.O.
OJT 30 24	Three-way 3E 24 F.O.	HJT 30 24	Three-way 3E 24 F.O.
OJT 30 36	Three-way 3E 36 F.O.	HJT 30 36	Three-way 3E 36 F.O.
OJT 30 48	Three-way 3E 48 F.O.	HJT 30 48	Three-way 3E 48 F.O.
OJT 30 60	Three-way 3E 60 F.O.	HJT 30 60	Three-way 3E 60 F.O.
OJT 30 72	Three-way 3E 72 F.O.	HJT 30 72	Three-way 3E 72 F.O.
OJT 40 12	Four-way4E 12 F.O.	HJT 40 12	Four-way 4E 12 F.O.
OJT 40 24	Four-way4E 24 F.O.	HJT 40 24	Four-way 4E 24 F.O.
OJT 40 36	Four-way4E 36 F.O.	HJT 40 36	Four-way 4E 36 F.O.
OJT 40 48	Four-way4E 48 F.O.	HJT 40 48	Four-way 4E 48 F.O.
OJT 40 60	Four-way4E 60 F.O.	HJT 40 60	Four-way 4E 60 F.O.
OJT 40 72	Four-way4E 72 F.O.	HJT 40 72	Four-way 4E 72 F.O.

List of Sizes for Canon-ball Shaped Metal Joint Box (Two Inlets & Two Outlets)

Product	Size	Core Number	Weight (KG)	Remarks
Canon-ball shaped Plastic Joint Box (Two Inlets & Two Outlets) (Tower Use for Cable)	AJS 04 012-T	12	1.8	Can also be workable for Two Inlets & One Outlet)
	AJS 04 024-T	24	1.8
	AJS 04 036-T	36	1.8
	AJS 04 048-T	48	1.8
	AJS 04 072-T	72	1.8
	AJS 04 096-T	96	1.8
