Porcelain & Steel Suspension Insulator , 25kv Composite Cap And Pin Type
Quick Detail:
Pin suspension porcelain insulator 52-1/52-2/52-3/52-4/52-5
1)Cap and pin type suspension insulator for high voltage
2)Material: Porcelain & Steel/Silicon rubber
3)ANSI standard
4)Item no.:52-1, 52-2, 52-3, 52-4, 52-5, 52-6, 52-8, 52-9
5)Creepage distance:117.8, 171, 209.5, 292, 279.4mm
Description:

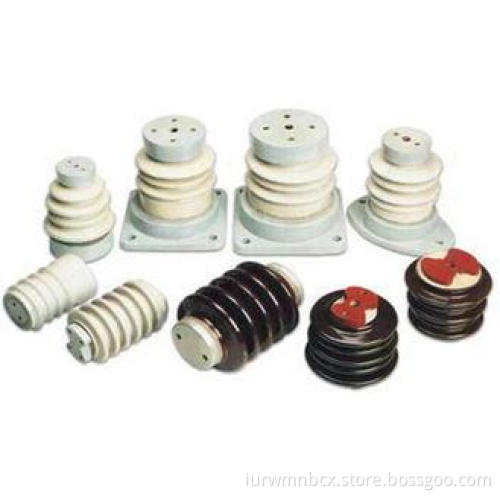

1. This porcelain station post insulator is produced with advanced isostatic pressing dry-forming technology
2. This porcelain post insulator has high bending strength load,which is enable to keep stability under sever natual circumstance.
3. The surface of this porcelain station post insulator has perfect glaze, which can be made into light grey or brown according to your requirement.
|
Type |
Rated Volt. kV |
Mechanical Failing load |
Creepage Dis. mm |
Main dimensions |
||||
|
Bend kN |
Torsion KN.m |
H |
D |
n1.d1-a1 |
n2.d2-a2 |
|||
|
ZSW-40.5/4L-3 |
40.5 |
4 |
2 |
1013 |
450 |
235 |
4-M12-Φ140 |
4-M12-Φ140 |
|
ZSW-40.5/8-3 |
40.5 |
8 |
2 |
1013 |
450 |
245 |
4-M12-Φ140 |
4-Φ14-Φ180 |
|
ZSW-40.5/4L-4 |
40.5 |
4 |
1.5 |
1260 |
550 |
233 |
4-M12-Φ140 |
4-M12-Φ140 |
|
ZSW-72.5/4-6L-3 |
72.5 |
6 |
1.5 |
1815 |
760 |
230 |
4-M12-Φ140 |
4-M12-Φ140 |
|
ZSW-72.5/4-6L-4 |
72.5 |
4 |
2 |
2248 |
890 |
272 |
4-M12-Φ140 |
4-M12-Φ140 |
|
ZSW3-126/4L-2 |
126 |
4 |
3 |
2750 |
1190 |
235 |
4-M12-Φ140 |
4-M12-Φ140 |
|
ZSW-126/8k-2 |
126 |
8 |
4 |
2750 |
1200 |
250 |
4-Φ18-Φ225 |
4-Φ18-Φ250 |
|
ZSW-126/12.5-2 |
126 |
12.5 |
8 |
2750 |
1200 |
260 |
4-Φ18-Φ225 |
8-Φ18-Φ254 |
|
ZSW-126/4-6L-3 |
126 |
6 |
2 |
3150 |
1190 |
250 |
4-M12-Φ140 |
4-M12-Φ140 |
|
ZSW-126/8k-3 |
126 |
8 |
4 |
3150 |
1220 |
250 |
4-Φ18-Φ225 |
8-Φ18-Φ254 |
|
ZSW-126/4-6L-4 |
126 |
6 |
2 |
3906 |
1190 |
297 |
4-M12-Φ140 |
4-M12-Φ140 |
|
ZSW-126/20K-3 |
126 |
20 |
10 |
3150 |
1150 |
290 |
8-Φ18-Φ254 |
8-Φ18-Φ254 |
Specifications:
