High precision Ball Bearing Spindle Drill Collet D1686-16 1
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Detail:
| MODEL | Name | OEM | Max Speed | Application | Machine |
| D1686-16 | Drill Collet | WESTWIND | 180,000 rpm | PCB drilling | Pluritec |
Description:

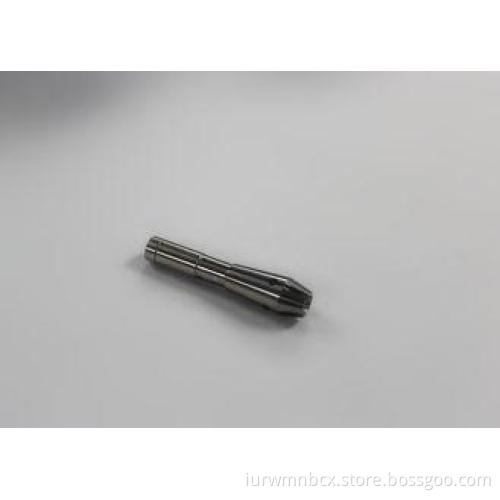

D1686-16 Westwind Spindle Collet of PCB Air Bearing spindle
High precision collet for PCB drilling or router spindle. Its high speed up to 180K rpm, for Pluritec CNC machine.
Runout, vibration, torque, etc controled very strictly to meet high precision hole drilling.
What is collet?
Collet is a key important spare part of PCB spindle, quality control is very strictly, longer use life is your priority choice.
We offer a range of spare collets, precision matched to nearly one hundred kinds of spindles in PCB industry . According to the different applications, there are collet for PCB Drilling Machine spindle, for PCB Routing Machine Spindle and the Auxiliary collet. Using KLKJ collets will enhance the performance of your spindle and extend their working life
Specifications:
| Collet list and application spindle | ||
| Model | PN | Application other Spindle |
| D1331-17 | 17593;17809;20924 | D1201-02 ,06 ,19 , 20 ,21 ,33 ,34 |
| D1263-03 ,04 ,06 ,07 ,08 ,09 , | ||
| D1199-03 ,D1210 ,ABW110 | ||
| 1531-01 ,02 ,04 ,06 ,09 , | ||
| 1331-01 ,02 ,03 ,07 ,08 ,09 ,10 , 13 | ||
| D1331-17 ,19 ,20 ,21 ,24 ,27 ,28 ,38 | ||
| D1331-26 | 38431;34381 | D1404 ,D1502 ,D1686-01 ,02 ,03 ,04 |
| 1331-25 ,26 ,29 ,31 | ||
| D1331-36 | 38730 | D1331-36 |
| D1331-41 | 37462 | 1331-08,30,32,41,42,44,D1201 |
| 1531-08 ,SM170 , MCT150 ,160 ,170 | ||
| D1331-47 | 41928 | 1331-22 ,1331-47 |
| D1331-49 | 41611 | 1331-49 ,48 ,51 |
| D1686 | 40374 | D1686-10 ,11 ,12 ,13 ,15 ,16 ,18 ,19 ,23 |
| D1722-03 | 1264 ,1600 , H501 ,H512 ,1600-01 ,H516D | |
| D1769 | 41611 | 1769-06 ,10 |
| D1787 | D1787-01 ,D1787-07 | |
| D1822-01 | D1822-09 | |
| M320-24 | 11257 ; 08085A1 | D1519-01 , M320-01 ,03 ,05 ,07 ,10 ,11 ,16 ,17 |
| M320-18, 19 , 20 ,22 ,23 ,27 ,28 ,29 ,30 ,36 ,47 ,52 | ||
| M320-38 | 16194 | 1303 , M320-43 , M320-38 ,M320-55 |
| M320-64 | 16703 | M320-46,50,62,63,64,65,66 |
| M320-63A , 64A ,65A , 66A ,D1170-04,D1303-01, | ||
| D1303-02,D1524-01,02,03,04,05 | ||
| M320-64C | 39773 | M320-64C |
| H242B | H242B | |
| HR08A | HR08A | |
| H912B | ABL-125 ,ASC125 , AW125 , 127480 ,88288 | |
| H916A3 | H916A3 , H916A | |
| H916C | 143480 | H916B |
| H920B | AW160-08 , AW160 , H920A | |
| H920E1 | H920E1 | |
| ABWR80 | 17508 ; 216844-10 , | 1251-03,ABWR80,M320-60,ABW80 |
| ABW125 | 41844;414741-01 | D1199-06,10,ABW125,ABW-170,D1473-07 |
| SC-53 | 53533;033503 | SC-53 |
| SC-63 | 63503 | SC-63 |
| SC-3163 | 263508 ; 263506; 263504 | SC-3263,HB60B,61B,HB60D,RA-60,KL-60B |
| W-62 | 40508518 | W-62 |
| W-69 | 230505 | W-69 |
| HB50B | 230504 | HB50 |
| 168 | 168 | |
| SM-220 | MCT220 | |
| AB200 | AB200 | |
| SFA2300 | SFA2300 | |
| More than above models can offered please contact us for details. | ||
Collet Maintenance:
Collet Maintenance - How Often?
It is important to carry out regular collet maintenance to ensure excellent performance and long life from your spindles.
KLKJ suggest the following maintenance intervals:-
Removable collets every 100 operating hours
Bonded collets every 24 operating hours
The actual frequency of collet maintenance is dependent on application, usage and environment, and could be shorter or longer than the times suggested above.
Please contact KLKJ if you would like advice on your particular situation.
Collet Identification
Spindle models with removable Collet:
M320, D1199, D1201, D1251, D1263, D1303, D1331,
D1473, D1524, D1531, D1686, D1750, D1823-02R
Spindle models with bonded Collet:
D1080, D1264, D1600, D1686, D1722, D1748, D1733,
D1787, D1790, D1795, D1812, D1822, D1823-01
Removable Collet Types:
Removable Collet are either “dead stop” or “positive lock” type.
The “dead stop” type can be identified by a groove around the rear barrel of the collet.
Please ensure you use the correct maintenance instructions.
Bonded Collet – Do not remove the collet
More details, please feel free to contact KLKJ.
