Single Screw 20-63MM PPR Pipe Production Line For PE / PPB
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Zhangjiagang city, China |
|---|
Single Screw 20-63MM PPR Pipe Production Line For PE / PPB / PPHP
Quick Detail of PPR Pipe production line SJ60-38 PPR pipe line:
New design SJ 60/38 high effective extruder
Raise 30% capacity than normal extruder
Used for PE/PPR/PPB/PPH/PERT and PO
Description of PPR Pipe production line SJ60-38 PPR pipe line :
High speed double PO resin pipe extrusion line
1.Double extrusion type:to promote the release of the maximum product capacity
2.Disc type calibration sleeve:Rapid prototyping
3.Accurate flow control,constant water pressure control
4.Accurate water temperature control
5.European large capcity filter,not easy blockage,to ensure that the water flow and convenient cleaning
6.Unified supporting wheel adjusting mechanism,quick and convenient
7.Belt haul-off,frequency or servo control
8Dust free cutter,forward and backward movingusing linear guide
Applications of PPR Pipe production line SJ60-38 PPR pipe line :
1:suitable material:PE/PPR/PERT/PB
2:suitable diameter:16-63mm
3:Max line speed :25m/min
Specifications of PPR Pipe production line SJ60-38 PPR pipe line :
|
Model |
BQX60-38 |
BQX75-38 |
BQX90-38 |
BQX120-38 |
|
Screw diameter(mm) |
60 |
75 |
90 |
120 |
|
L/D |
38 |
38 |
38 |
38 |
|
Motor power(kw) |
110DC |
160DC |
250DC |
315DC |
|
Capacity(kg/h) |
400-450 |
550-600 |
850-900 |
1000-1100 |
Competitive Advantage of PPR Pipe production line SJ60-38 PPR pipe line :
This series high efficiency single screw extruder to introduce the Europe advanced concept of plastic extruding ,screw use L/D 38:1 .
Double mixing head, separation structure,can make sure melting material 100% plasticizing before die head,capacity increases by about 30% than in ordinary domestic models;it is used for PE/PPR/PPB/PPH/PERT and PB.
To meet of the individual demand and more diverse applications,our company can supply different L/D extrusion machine.

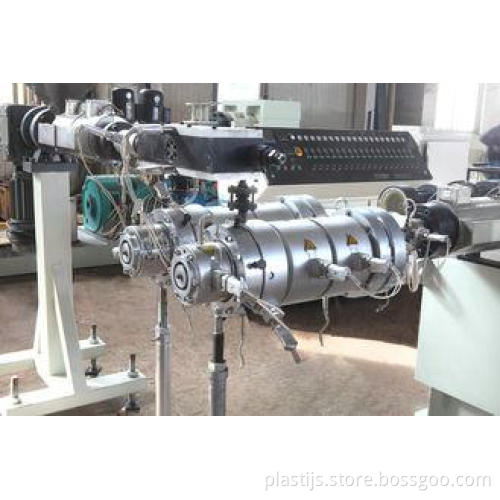

SJ60/38 PPR PIPE PRODUCTION LINE
