Quick Detail of PPR pipe production line spray tank :

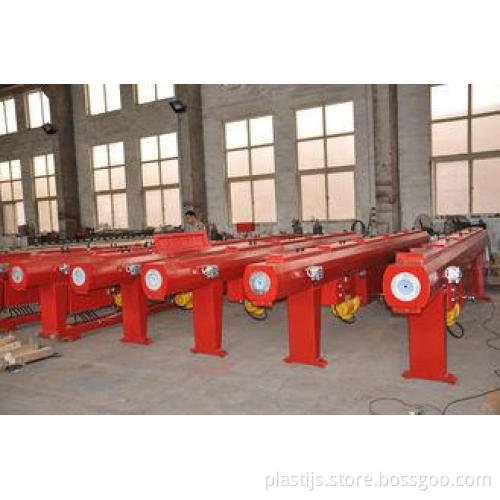

Stainless Steel Automatic Ppr Pipe Production Line With Spray Tank
Description of PPR pipe production line spray tank :
The barrel is made of stainless steel.Stainless steel ball float water level control.Nozzle materials for ABS engineering plastics.Rack up and down adjustable, cover with wheel mechanism.
Length : 6m , water pump : 3 kw . Water pump brand : Guangyi
Applications of PPR pipe production line spray tank:
PPR Pipe cooling tank , The barrel is made of stainless steel.Stainless steel ball float water level control.Nozzle materials for ABS engineering plastics.Rack up and down adjustable, cover with wheel mechanism.
Specifications of PPR pipe production line spray tank:
|
Model |
63 |
63-s |
125-160 |
|
Pipe range(mm) |
16-63 |
16-63 |
32-125 |
|
Water pump(kw) |
3 |
2*2.2 |
2*2.2 |
|
Vacuum pump(kw) |
2.2 |
2*1.5 |
2*2.2 |
|
Length of calibration tank(mm) |
6000mm |
||
1. PPR raw material for elements only carbon and hydrogen elements, without harmful toxic elements, healthy,not only for hot and cold water pipe, but used in clean drinking water system.
2.Good heating resistance, PPR pipe via soften point of 131.5 degree.the Max working temperture upto 95 degree, the Pipe which used in Water supply and Drainage up to the construction specification required by Clients.
3.Long service life, PPR pipe in working temperature 70 degrees,working pressure1.0 Mpa, can be up to 50 years, at room temperature 20 degree, easy installation, connection
4.Recycling the waste PPR material
Competitive Advantage of PPR pipe production line spray tank:
- Vacuum sizing tank and waterway system are optically designed and made of stainless steel.
2.Waterway system and vacuum system are stable and adjusted.
3.Vacuum tank can be adjusted horizontally and vertically
PPR pipe production line spray tank
