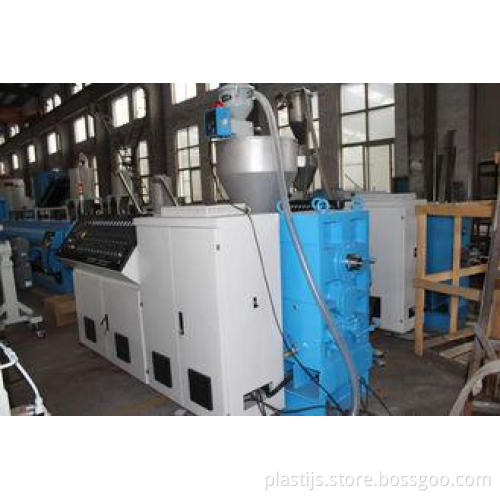

Cold Hot Water Pipe Extrusion PPR Pipe Production Line Plastic Pipe Extruding Machine
Quick Detail of ppr pipe production line :
PPR Pipe Extruding Line
1.Output :120kg/h
2.L/D: 33:1
3.CE and ISO9001:2000
4.Pipe Range:20-63mm
Description of ppr pipe production line :
1.Special single screw extruder for polyolefin,having high extruding velocity and effective plasticization.
2.Separation mixing screw specialized for polyoefin.
3.Speciallly designed three co-extruding die,reasonable channel,smooth outside and inside wall,and little internal stress.
4.Producing pipe limit Φ20-Φ160mm,manufacture velocity up to 16m/min.
5.May be used to produce HDPEsilicon tube,ordinary PP-R,PE and PEX pipes.
6.Low cost:The cost of nanometer & anti-virus pipe is merely increase 5-10% on the ordinary pipe basis.
Specification of ppr pipe production line :
| Main Technical Parameter | ||
| Model | SJ65/30-33 | SJ75/30-33 |
| Pipe diameter(mm) | 20-63 | 63-160 |
| Screw diam. & ribbon width | Φ65,33/1 Φ65,30/1 | Φ75,33/1 Φ75,30/1 |
| Output | 120kg/h | 220kg/h |
| Linear velocity(max) | 10m/min | 4m/min |
| Installation capacity(kw) | 58 | 85 |
| Productivity for year(km) | 350000 | 150000 |
Applications of ppr pipe production line :
The single wall corrugated pipe are widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
Competitive Advantage of ppr pipe production line winder :
Plastic pipe winder
1.Low power consumption
2.Pipe diameter:16-110mm
3.Application:PP PE PVC PPR
4.Full automatic
ppr pipe production line
