Automatic PPR Pipe Production Line Plastic Pipe Making Machine
Quick Detail of ppr pipe production line winder :
Used for winding plastic pipes
1. adopt torque motor
2. automatic pipe displacement

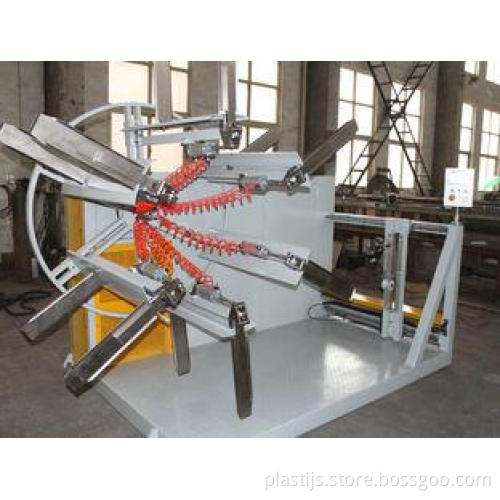

Description of ppr pipe production line winder :
Single panel coiler
The single pipe winder is mainly used to collect soft plastic pipes. It can be applied in many pipe production lines.With good quality, it has long service life which saves cost and labors.
Main technical parameter
diameter of pipe φ75-φ110mm(adjustable)
speed: 0.5-4m/min
width : 1000mm(adjustable)
pressure : 0.6Mpa
Double Panel coiler
Main technical parameter
diameter of pipe φ16-φ63mm(adjustable)
speed: 0.5-15m/min
width : 580-1500mm(adjustable)
pressure : 0.3-0.6Mpa
Specification of ppr pipe production line winder :
|
Model |
Pipe diameter |
Outside diameter of coil |
Coil width |
Winding speed |
Inner diameter of coil |
Moment motor |
|
JQD-32 single station |
16-32 |
800-1280 |
200-370 |
1-20m/min |
480-800mm |
10N.M |
|
JQD-32 double stations |
16-32 |
800-1280 |
200-370 |
1-20m/min |
480-800mm |
10N.M |
|
JQD-63 single station |
32-63 |
1400-2000 |
360-560 |
1-20m/min |
600-1200mm |
25N.M |
|
JQD-63 double stations |
32-63 |
1400-2000 |
360-560 |
1-20m/min |
600-1200mm |
25N.M |
|
JQ-110 single station |
63-110 |
|
1000 |
0.5-5m/min |
1600-2400mm |
40N.M |
|
JQ-160 single station |
75-160 |
|
1200 |
0.5-5m/min |
2000-2800 |
64n.m |
Applications of ppr pipe production line winder :
The machine can be used for PE,HDPE,PPR pipe diameter which is from 20mm-160mm,
Competitive Advantage of ppr pipe production line winder :
Plastic pipe winder
1.Low power consumption
2.Pipe diameter:16-110mm
3.Application:PP PE PVC PPR
4.Full automatic
