Plastic Recycling Automatic PE PP Film Washing Line Film Squeezer
Quick Detail:
PE PP washing line film squeezer
1) capacity: 200-1000kg/h
2) material: PE PP film
3) final moisture content: 3-5%
4) manufacturer
Description:
PE PP washing line film squeezer is specially designed for dewatering film by squeezing mechanically. The final moisture content is around 3-5%. The material dried by this machine is widely used in granulating machine.
They are very efficiency machines compared to hot air drying systems when considering energy consumption.
Model options with 200-1000kg/h capacity are available.
Features:
* Stainless Steel Screen
The filer screen in the squeezing chamber is made of stainless steel,with the function of corrosion resistance and rustproof
* No Clogging of Screen
The filer screen are specially designed to prevent plastic material from clogging
* Final moisture within 5%
The final moisture of the material which are extruded by the dryer is 3-5%
Applications:
PE PP washing line film squeezer is specially designed for dewatering film by squeezing mechanically.
Specifications:
|
Model |
JGJ-Ⅰ |
JGJ-Ⅱ |
|
Dimension(mm) |
2450*800*1800 |
2450*800*1800 |
|
Inlet(mm) |
700*670 |
700*670 |
|
Motor power(kw) |
45-75 |
75-90 |
|
Screw diameter(mm) |
270 |
300 |
|
Discharging water |
From the bottom |
From the bottom |
|
Feeding diameter(mm) |
5-200 |
5-200 |
|
Discharging diameter(mm) |
12-20-30 |
12-20-30 |
|
Hydraulic power(kw) |
7.5 |
7.5 |
|
Pelletizing power(kw) |
2.2 |
2.2 |
|
Moisture |
3-10% |
3-10% |
|
Weight(kg) |
4000 |
4000 |
Competitive Advantage:
PE PP washing line film squeezer has less consumption, high working efficiency, and lower noise comparing the rotor type dewatering machine.
Pls tell us follow information to send quotation:
1) what raw material to deal?
2) what capacity require?
This machine is not only with high capacity but also with low energy consumption. The final moisture content can up to 3-5%. It will help you reduce the cost and improve productivity. If you need more information, pls feel free to contact us!

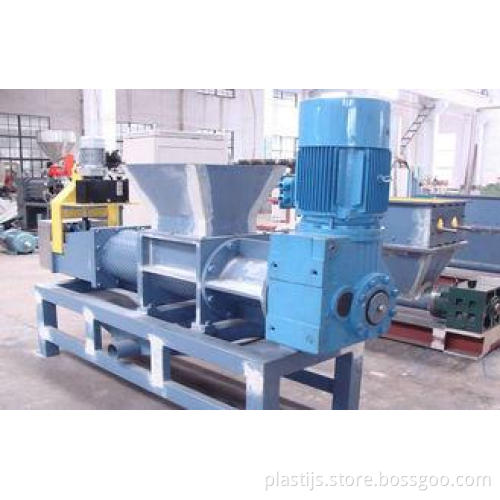

PE PP washing line film squeezer:
