PLC Control PE PP Film Washing Line Film Squeezer Machine 22kw - 75kw
Quick detail:
|
Application |
plastic film squeezer machine |
|
Voltage |
220v/380v/440v /customizable |
|
Power |
22-75kw |
|
Dimension(L*W*H) |
3000*1500*1300mm |
|
Weight |
2 ton |
|
Plastic type |
PP/PE/HDPE |
|
Control system |
PLC |
|
Packing |
standard seaworthy packaging |
|
quality assurance |
strict testing system |
|
humidity |
5%~7% |
Application:
Ourplastic film squeezer machine consists of frame, feeding box, discharging box, spiral spindle,
sieve plate, fixed shell for sieve plate, driving system, etc. Your material will be put into the feeding box,
with the help of screw shaft, un-equidistant screw shaft and fixed sieve plate will squeeze the material in
order to wiping and dewatering.
The squeezing dryer is conical shell, equipped with un-equidistant screw shaft, which will compress
material during rotating because of the difference from screw pitch length and height. The water squeezed
from material will flow to launder through screen hole, and the material will be discharged from exhaust
end.
Description:
a)This machine is our new designed machine, made by the advanced Italian technical, specially screw
pressing dewatering design;
b)It is equipped with a electric control cabinet, feeder mouth is easy to control the drying effect;
c)This machine is especially for plastic film, plastic bags, woven bags, Jumbo bags. Solve the drying
problem in the past.
d)squeezing dewatering machine , instead of centrifugal dryer after washing tank
drying film by screw-pressing, output humidity less than 6%, less power consumption , less maintenance.
Specification:
|
Item |
Traditional Dewatering Machine |
plastic film squeezer |
|
Specifications |
1,motor power :75KW 2,rotate speed :1500rpm 3,down-drain 4,Rotor effective length : 1700mm 5,Product capacity :500kg/h |
Motor power : 18.5kw Max capacity : 500-700kg/h Screw diameter :300mm Hydraulic station power : 0.55kw, PLC control, with text controller |
|
Final humidity |
10%~12% |
5%~7% |
|
How to reach humidiity less than 5% |
Equip three steps Hot Air pipe drying system |
Equip one step Hot Air pipe drying system |
Competitive advantage:
Save electricity energy 56.5kw per hour, high product capacity

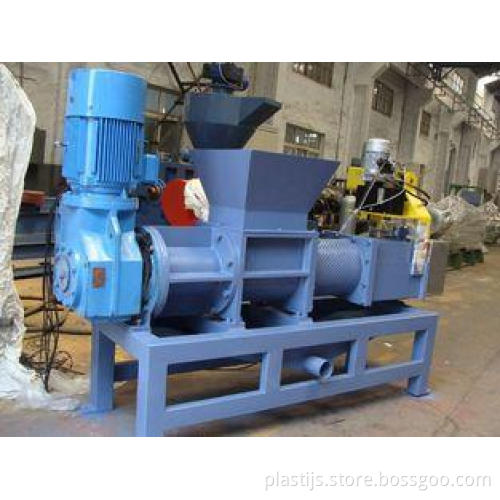

PE PP washing line film squeezer:
