Single Shaft PE PP Film Washing Line For Crushing Waste Pla

Single Shaft PE PP Film Washing Line For Crushing Waste Plastic

Quick detail:

Application:

1. Mainly suitable for crushing waste plastic, like shoes, chairs, pipes, window profile ,TV sets, PET

bottle and so on.

2. Adapt high quality blade: SKD-11, the installation of the cutting blade can be adjusted. Cutting knife

can be sharpened again, it has a longer lifetime than most other material.

3. Low price and good quality.

Specification:

Description:

Processed material(pet, pe/pp Plastic crusher, crushing machine)

PP PE plastic films, PP PE bags, PP woven bags,HDPE/PET plastic bottles, plastic containers.

Cutting Chamber(pet, pe/pp Plastic crusher, crushing machine)

Centrally hinged two-piece welded steel construction, upper and lower sections of the housing meet

horizontally, the stator knives are mounted to opposite sides of the dividing surface, reversible stator

knives with double cutting edges fitted as single elements to the lower housing section, multiple

resharpening and adjustment of stator knives is possible,hinged screen holder and separate door for

screen access, the upper housing is opened by means of a wrench operated manually

Rotor(pet, pe/pp Plastic crusher, crushing machine)

Heavy duty paddle type rotor in welded steel construction with knife cover plates, the knife mounting

bolts are screwed into the mounting plates and not into the rotor. All knives are manufactured from high

quality chrome nickel tool steel.

Cutting geometry(pet, pe/pp Plastic crusher, crushing machine)

V-shaped arrangement of the rotor knives

Knife setting (pet, pe/pp Plastic crusher, crushing machine)

Fixture for quick adjustment of the knives outside the machine. All the knives are pre-adjustable outside

the machine Base frame(pet, pe/pp Plastic crusher, crushing machine)

Welded profile construction, complete frame placed on anti-vibrating rubber-metal connectors, absorbing

vibrations and reducing noise, drive motor on tension rails with pulleys and V-belt casing is mounted on a

flat frame, integrated suction trough with optimal geometry for easy material discharge

Hopper(pet, pe/pp Plastic crusher, crushing machine)

Special design hopper for hand or conveyor belt feeding in heavy duty execution, withcurtains to prevent

fly backs designed for the specified materials, hopper can be liftedtogether with the hinged upper housing

part Main drive(pet, pe/pp Plastic crusher, crushing machine)

AC-motor three phase, type B3, degree of protection IP-54, 1500 rpm including of heavy duty bearings

Safety devices(pet, pe/pp Plastic crusher, crushing machine)

Integrated run down safety devices prevent access to the unit until the rotor has reached a stand still

Starting equipment(pet, pe/pp Plastic crusher, crushing machine)

Electrical control cabinet for electrical controlling of the entire system, all electrical units mounted in a steel

plate cabinet, switches are equipped with star delta protection, press button switches with light indicators,

lockable main switch, wired to a terminal strip, all fuses included. Designed in accordance with the valid

VDE safety requirements.

Competitive advantages:

1.higher throughput with reduced power consumption because of optimal geometry of the rotor and cutting

chamber

2.optimal rotor knife mounting for heavy duty application and high cutting power

3.better quality cut ( granule shape ) and lower noise level due to exact cutting gap and optimal rotor

design

4.it is not necessary to adjust the knives in the machine

5.replacement knives can be adjusted while the granulator is running, this reduces the granulator

down-time considerably

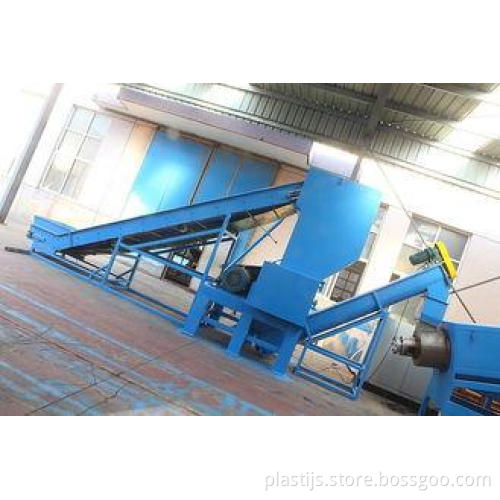

PE PP washing line plastic film crusher:
