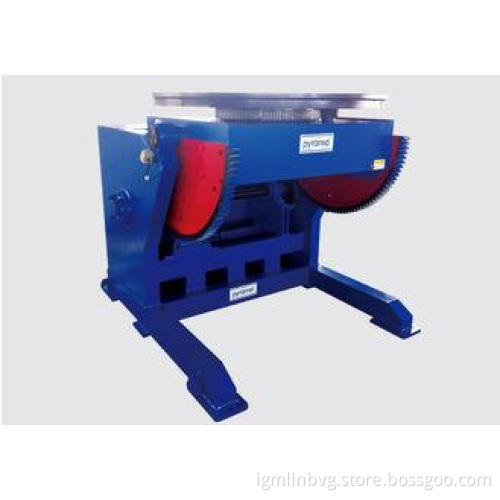

Variable Speed L Type Special Rotary Welding Positioners Turning Table 2 Tons
Quick Detail:
- Name:L type special positioner
- Brand:Pyramid
- Loading Capacity:2 tons
Description:
Rotation adopts inverter of large range and good stability making the workpiece in perfect position for welding.The worktable is tilted by motor to make accurate and reliable positon.Good quality welding turntable with any capacity makes the workpiece in perfect position for welding.The worktable adopts AC frequency conversion speed,large range and variable speed and high precision to weld at needed position.Welding turntable improves welding quality and productivity and lessens welding labor.
Applications:
Workpiece can be braked & self-locked on any position.
Specifications:
|
Model |
LHB2000 |
|
Rated load capacity(kg) |
2000 |
|
Overturning speed(rpm) |
0.15-0.76 |
|
Rotating speed(rpm) |
0.14-0.7 |
|
Motor power(km) |
1.5/1.1 |
|
Speed adjust way |
Frequency stepless speed adjust |
Competitive Advantage:
This series of positioner can meet customers’ special order for welding.
