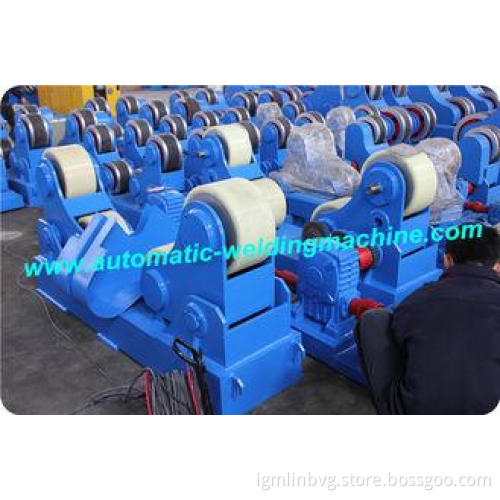

KGK Series Adjustable Self Aligned Welding Rotator for Pipe
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Wuxi, China |
|---|
Self-Aligned Welding Rotator, Steel pipe welding turning roll tank welding rotator
1. Description:
Pipe welding rotators adopts self aligning adjustable method to welding pipe and tank. The conventional turning roll can be aligned by itself according to the size of the pipe, the adjustable turning-roll can be adjusted by lead screws and bolts. They can be controlled with AC frequency inverter .We can design the turning rollers according to the customers requirement.
|
Type |
Max load weight (kg) |
Suitable diameter of vessel (mm) |
Diameter and width of the wheel(mm) |
Wheel linear velocity (m/h) |
Power of motor (kw) |
Way of setting |
|
|
Rubber rollers |
Metal rollers |
||||||
|
HGZ5 |
5000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
6-60 |
0.75 |
AC converter stepless speed adjust or electro-magnetic speed adjust |
|
HGZ10 |
10000 |
Φ320-2800 |
Φ300×120 |
2×Φ280×25 |
6-60 |
1.1 |
|
|
HGZ20 |
20000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×30 |
6-60 |
1.5 |
|
|
HGZ40 |
40000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×40 |
6-60 |
3 |
|
|
HGZ60 |
60000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×50 |
6-60 |
4 |
|
|
HGZ80 |
80000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×60 |
6-60 |
4 |
|
|
HGZ100 |
100000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×70 |
6-60 |
5.5 |
|
2. Main Features:
a. Self aligned welding rotator the swing angle of roller group can be automatically according to the work piece diameter and size and manual calibration is not needed.
b. The active roller stand adopts gear joggle transmission.
c. Steel glue assembly roller, long ton adopts full steel rolling, which has big loading capacity and driven capacity.
d. Imported frequency conversion speed regulator, which features in wide regulation width, big starting power and high adjustable precision.
(If you want to see the video please search Luk Mankai on youtube)
