5 Ton - 650 Ton Conventional Pipe Welding Rotator For Tank
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Wuxi, China |
|---|
5 Ton - 650 Ton Conventional Pipe Welding Rotator For Cylindrical Body
1. Description:
Welding column and boom series has conventional welding rotator and self aligned welding rotator, adjustable and other forms, apply to cylindrical body welding, polishing, assembly, such as rubber lining. Self-adjusting roller frame can be simplified to adjust the size of their own. Adjustable roller frame, such as manual adjustments, the use of AC variable frequency speed control speed or electromagnetic governor wither. We can also set up in accordance with the needs of customers will be prepared juice types of wheel frame.
2. Specifications (conventional welding rotators):
|
Type |
Max load weight(kg) |
Suitable diameter of vesse(mm) |
Diameter and width of the wheel(mm) |
Wheel linear velocity (m/h) |
Power of motor (kw) |
Adjustable mode for space |
Way of setting |
|
|
Rubber rollers |
Metal rollers |
|||||||
|
HGK5 |
5000 |
Φ250-Φ2300 |
Φ250×100 |
2×Φ240×20 |
6-60 |
2×0.37 |
Manual screw arbor control or conventional power grading |
AC converter stepless speed adjust or electro-magnetic speed adjust |
|
HGK10 |
10000 |
Φ320-Φ2800 |
Φ300×120 |
2×Φ280×25 |
6-60 |
2×0.55
|
||
|
HGK20 |
20000 |
Φ500-Φ3500 |
Φ350×120 |
2×Φ340×30 |
6-60 |
2×1.1 |
||
|
HGK40 |
40000 |
Φ600-Φ4200 |
Φ400×120 |
2×Φ390×40 |
6-60 |
2×1.5 |
||
|
HGK60 |
60000 |
Φ750-Φ4800 |
Φ450×120 |
2×Φ440×50 |
6-60 |
2×2.2 |
Conventional power grading control |
|
|
HGK80 |
80000 |
Φ850-Φ5000 |
Φ500×120 |
2×Φ490×60 |
6-60 |
2×3 |
||
|
HGK100 |
100000 |
Φ1000-Φ5500 |
Φ500×120 |
2×Φ490×70 |
6-60 |
2×4 |
||
|
HGK160 |
160000 |
Φ1100-Φ6000 |
/ |
Φ490×100 |
6-60 |
2×4 |
||
|
HGK250 |
250000 |
Φ1200-Φ7000 |
/ |
Φ650×220 |
6-60 |
2×5.5 |
||
|
HGK400 |
400000 |
Φ1300-Φ7500 |
/ |
Φ700×260 |
6-60 |
2×7.5 |
||
|
HGK650 |
650000 |
Φ1400-Φ8500 |
/ |
Φ900×400 |
6-60 |
2×11 |
||

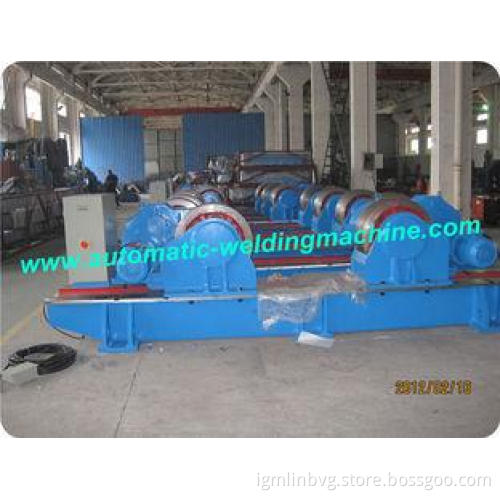

| Conventional welding rotator with PU and Metal wheel, it will adjust by screw or bolt, if you want to see the video please research Luk Mankai on youtube. |
| Control box of welding rotator, usually the production standard we will follow a famouse canada company to ensure the quality, the electric system is from Siemens or Panasonic. |
About Us:
1. Main electric elements are Siemens / Schneider.
2. Have strong design team, experience engineers supply good service.
3. Solve your technical problems in 24 hours and provide international warranty service for engines.
4. Design the appearance form according to customers’ request.
5. More than 13 years professional production experience, the quality is reliable.
6. CE and FCC certification.
7. Punctual delivery.
8. Accept OEM and ODM requirements.
9. Accept testing before delivery.
