Cylinder Pipe self Aligning Welding Rotators, Pipe welding
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Wuxi, China |
|---|

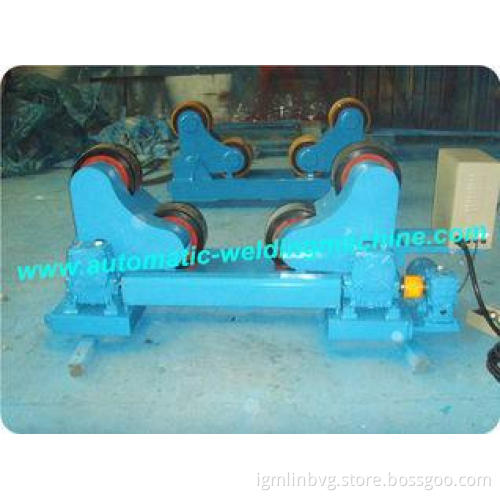

Cylinder Shell Self Aligning Welding Rotators With Anti Creep
1. Quick Detail:
Self-aligning welding rotator
a. One power roller and one idler roller
b. Import electric components
c. Variable speed
d. CE approved
2. Description:
Self aligning welding rotator is used to weld, polish and assemble the cylinder shells, and to line the shells with rubber. It can be aligned by itself according to the size of the shell, it can be controlled with AC frequency converter, and the linear velocity is displayed by the digital. We also can design the customize various types of the welding rotator in accordance with the customers requirement.
3. Specifications:
|
Type |
Max loading (kg) |
Range of suitable work piece (mm) |
Dia. and width of the wheel (mm) |
Adjustable mode for space |
Way of setting |
|
|
Rubber rollers |
Metal rollers |
|||||
|
HGK2 |
2000 |
Φ200-1200 |
Φ200×100 |
2×Φ190×16 |
Manual screw adjustment or bolt shift |
AC converter stepless speed adjust
|
|
HGK5 |
5000 |
Φ250-2300 |
Φ250×100 |
2×Φ240×20 |
||
|
HGK10 |
10000 |
Φ300-2800 |
Φ300×120 |
2×Φ290×25 |
||
|
HGK20 |
20000 |
Φ500-3500 |
Φ350×120 |
2×Φ340×35 |
||
|
HGK40 |
40000 |
Φ600-4200 |
Φ400×120 |
2×Φ390×45 |
||
|
HGK60 |
60000 |
Φ750-4800 |
Φ450×120 |
2×Φ440×60 |
Bolt shift |
|
|
HGK80 |
80000 |
Φ850-5000 |
Φ500×120 |
2×Φ490×70 |
||
|
HGK100 |
100000 |
Φ1000-5500 |
Φ500×120 |
2×Φ490×100 |
||
|
HGK150 |
150000 |
Φ1100-6000 |
/ |
Φ620×220 |
||
|
HGK250 |
250000 |
Φ1100-7500 |
/ |
Φ660×260 |
||
|
HGK400 |
400000 |
Φ1100-7500 |
/ |
Φ750×320 |
||
|
HGK500 |
500000 |
Φ1100-7500 |
/ |
Φ750×400 |
||
Note: For 2-100T roller is steel and rubber combination roller. For 100-500T roller is made of whole steel roller or imported rubber.
| 20T Welding rotator in container | Plastic paper packaged | If you want to see the video please search Luk Mankai on youtube |
4. Competitive Advantage:
a. Polyurethane roller or Rubber Roller
b. Anti creep function
c. Hydraulic lifting for fit up pipe
d. Automatic traveling or Manual traveling on the rail
e. Customization
