Steel Pipe Rotators , Tank Rollers For Thick-Wall Cylinder Welding
1. Quick Detail:
Pipe Welding Rotator usually including fit-up welding rotator, self aligning welding rotator and conventional welding rotator.
2. Description:
Pipe welding rotators adopts self aligning adjustable method to welding pipe and tank. The conventional turning roll can be aligned by itself according to the size of the pipe, the adjustable turning-roll can be adjusted by lead screws and bolts. They can be controlled with AC frequency inverter .We can design the turning rollers according to the customers requirement.
3. Specifications:
|
Model |
HGK60 |
HGK80 |
HGK100 |
HGK150 |
HGK200 |
|
|
Max loading |
60 |
80 |
100 |
150 |
200 |
|
|
Working range |
750 |
850 |
1000 |
1200 |
1500 |
|
|
4800 |
5000 |
5500 |
6500 |
8000 |
||
|
Roller size |
Rubber roller |
450 |
500 |
500 |
550 |
550 |
|
120 |
120 |
120 |
120 |
120 |
||
|
Metallic roller |
444 |
494 |
494 |
540 |
540 |
|
|
50 |
60 |
70 |
90 |
100 |
||
|
Linear speed |
6-60 |
6-60 |
6-60 |
6-60 |
6-60 |
|
|
Speed control |
Stepless electro-magnetic speed control or VFD speed control |
|||||
|
Motor power |
4 |
4 |
5.5 |
5.5 |
7.5 |
|
4. Competitive Advantage:
a. Main electric elements are Siemens/Schneider.
b. VFD rotary speed control, improving the reliability of operation.
c. Steel and rubber roller or PU roller which can ensure a long time using.
d. With lubrication system.
e. Accept testing before delivery.
f. Accepy special design and custom.
|
PU wheel welding rotator, self aligning model |

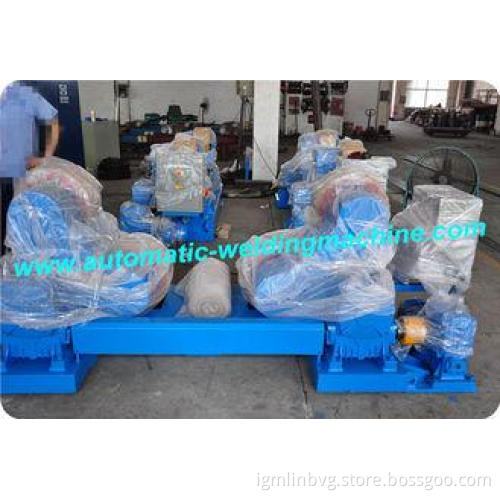

20T Self aligned welding rotator If you want to see the video please search Luk Mankai on youtube |
