Product Description

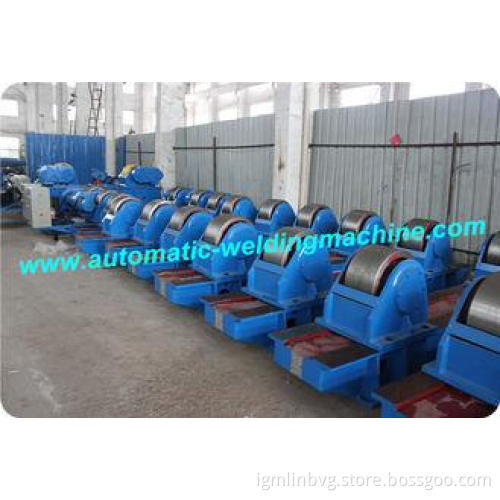

Screw or bolt adjustable pipe conventional weding rotator with metal wheel

1. Quick Detail:

a. The bolt adjusting rotator is suitable for circular pipe / tank / vessel welding.

b. The distance between wheels can be adjustable by lead screw.

c. There are several specifications for customer choice; we also can special design according to customer’s requirements.

2. Description:

Conventional welding rotator used in many industries such as pressure vessel, boiler, freezing equipment, power station construction, metallurgical, engineering machinery, marine building, and petro-chemical industries etc.

The distance between two rollers can be adjustable by bolt fasten, to accommodate work-piece of variable diameters. The equipment features in good adaptation, smooth revolve, VFD adjustable revolve speed and displaying in linear speed, which is suitable for welding, polishing, assembly for pipe/tank/vessel longitudinal and transverse seam welding.

Our company also can customize welding rotator in all varieties according to client's requirements.

3. Specifications:

Model	Max Load Capacity)	Vessel Diameter Range(mm)	Adjustable Model	Motor Power (kw)	Roller Speed(m/min)
Model	Max Load Capacity)	Vessel Diameter Range(mm)	Adjustable Model	Motor Power (kw)	Roller Speed(m/min)
HGK5	5	250-2300	Adjust by manual lead screw or bolt	2×0.37	0.1-1 Variable Frequency Drive
HGK10	10	320-2800		2×0.55
HGK20	20	500-3500		2×1.1
HGK40	40	600-4200		2×1.5
HGK60	60	750-4800		2×2.2
HGK80	80	850-5000	Adjust by bolt	2×3
HGK100	100	1000-5500		2×4
HGK150	150	1100-6000		2×4
HGK250	250	1100-7500		2×5.5
HGK400	400	1100-7500		2×7.5
HGK500	500	1100-7500		2×11
