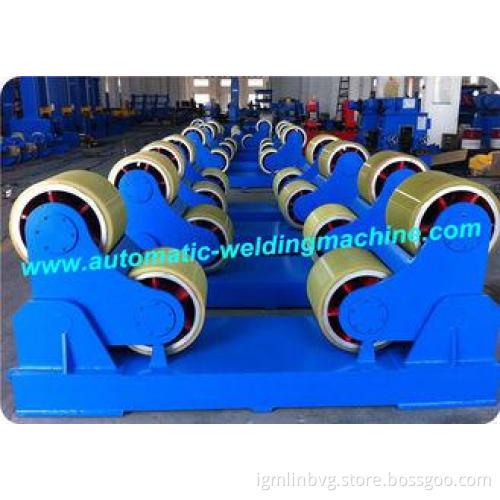

Self Aligning Pipe Welding Rotator With Loading Capacity 20T
1. Structure principle
Self-aligned welding rotator including one power and one idle, after load on the work-piece, the roll will auto suit the work-piece, no need to adjust the center distance. The transmission mechanism: motor, multi step speed adjustable, roll, can adopt frequency speed adjust.
2. Technical parameter
SAR-30 Series
● Maximum load capacity: 30T
● Suitable work-piece range: ф600-ф4200mm
● Roller linear speed: 6-60 m/h
● Speed adjust mode: frequency steepless speed adjust
● Motor power: 3KW
● Rubber roller diameter and width: ф400*120mm
● Metal roller diameter and width: 2*ф390*40mm
SAR-50 Series
● Maximum load capacity: 50T
● Suitable work piece range: ф750-ф4800mm
● Roller linear speed: 6-60 m/h
● Speed adjust mode: frequency steepless speed adjust
● Motor power: 4KW
● Rubber roller diameter and width: ф450*120mm
● Metal roller diameter and width: 2*ф440*50mm
SAR-100 Series
● Maximum load capacity: 100T
● Suitable work piece range: ф1000-ф5500mm
● Roller linear speed: 6-60 m/h
● Speed adjust mode: frequency steepless speed adjust
● Motor power: 5.5KW
● Rubber roller diameter and width: ф500*120mm
● Metal roller diameter and width: 2*ф490*80mm
SAR-200 Series
● Maximum load capacity: 200T
● Suitable work piece range: ф1800-ф8000mm
● Roller linear speed: 6-60 m/h
● Speed adjust mode: frequency steepless speed adjust
● Motor power: 7.5KW
● Metal roller diameter and width: ф550*260mm
3. Products supply range and component elements
● Frame assembly: one power and one idle rotator
● Electrical control system: electrical control box, manual operation box and its accessory.
● Spare parts: two circuit breaker, two buttons and one piece of documentation
4. Technical document
● Operation instruction (including electrical principle drawing)
● Certification, packing list, foundation drawing of the machine
5. Parts prepared by users
● Foundation bolt (or expansion bolt)
