Customized Pipe Welding Rotator And Positioner For Wind Tower Production Line
1. Feature
● Easy fit-up, save time and reduce labor strength, efficiency improved by 80%
● Accurate control with hydraulic ratio valve and displacement sensor. Ensure the alternate edges well-distributed
● Friendly human-machine interface, touch screen operation, monitoring system as optional
● End part with Co2 welding system (or SAW welding system)
● Motorized traveling, VFD speed control, linkage centralized control with feeding rotators
2. Introduction
In the wind power station, wind energy may change to the electricity energy. The line must circle to the stator winding. These stator winding is 2kw power in the CHINA AIRPLANE.
The welding rotator is special design .It is different from the normal rotator. The shaft is not fixed. The wheels are adopt special PU.

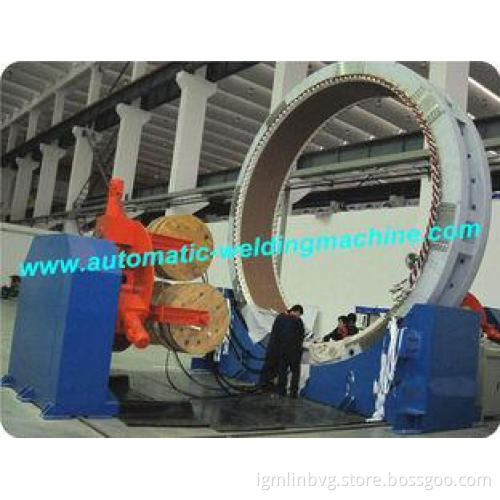

The positioner total line frame may revolution and each line frame may rolling itself. Two positioners put beside the assembling rotator.
|
Type |
Maximum loading (Kg) |
Table diameter (mm) |
Revolve speed (rpm) |
Tilting angle (°) |
Tilting power (KW) |
Revolving power (KW) |
|
TP05 |
50 |
300 |
0-3 |
0-90 |
By hand |
0.12 |
|
TP1 |
100 |
400 |
0-3 |
0-90 |
By hand |
0.2 |
|
TP3 |
300 |
600 |
0-2 |
0-90 |
By hand |
0.37 |
|
TP6 |
600 |
800 |
0-1 |
0-120 |
0.55 |
0.75 |
|
TP12 |
1200 |
1000 |
0-1 |
0-120 |
1.1 |
1.1 |
|
TP20 |
2000 |
1200 |
0-0.9 |
0-120 |
1.5 |
1.5 |
|
TP30 |
3000 |
1400 |
0-0.8 |
0-120 |
2.2 |
1.5 |
|
TP50 |
5000 |
1600 |
0-0.7 |
0-120 |
3 |
2.2 |
|
TP100 |
10000 |
2000 |
0-0.6 |
0-120 |
7.5 |
4 |
|
TP200 |
20000 |
2500 |
0-0.5 |
0-120 |
11 |
7.5 |
|
TP300 |
30000 |
3000 |
0-0.4 |
0-120 |
18.5 |
11 |
|
TP500 |
50000 |
3000 |
0-0.4 |
0-120 |
22 |
15 |
|
Remote control box line length:10m The speed adjustment way: frequency conversion |
||||||
