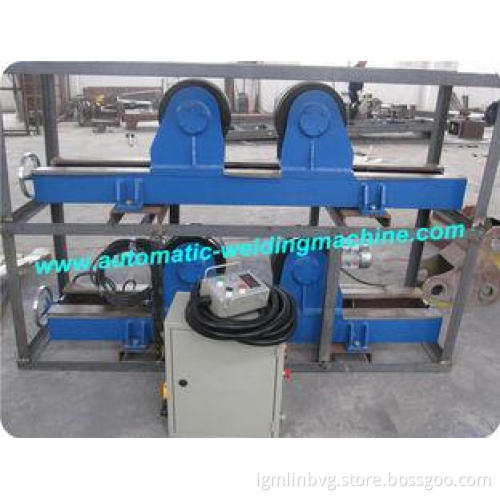

Screw / Bolt Adjustment Conventional Pipe Welding Rotator For Pressure Vessel
1. General introduction
Conventional pipe welding rotator absorbs the same products' excellence from domestic and international. Adjustable Welding turning roller can adjust the center distance by reserved screw holes or lead screw in order to adapt to diameter of work piece.
It can be widely applied to the oil industry, press vessel field, wind power production line, pipe line production, and many other round work pieces. It can realize the combination control with other machines. The machine can assort all kinds of auto welding or manual welding, improving welding quality, lessening welding labor and improving efficiency.
2. Technical data
|
Type |
Maximum load weight (kg) |
Suitable diameter of vessel (mm) |
Diameter and width of the wheel (mm) |
Wheel linear velocity (m/h) |
Power of motor (kw) |
|
|
Rubber rollers |
Metal rollers |
|||||
|
HG5 |
5000 |
Φ250-Φ2300 |
Φ250×100 |
Φ2×240×20 |
6-60 |
2×0.37 |
|
HG10 |
10000 |
Φ320-Φ2800 |
Φ300×120 |
Φ2×280×25 |
6-60 |
2×0.55 |
|
HG20 |
20000 |
Φ500-Φ3500 |
Φ350×120 |
Φ2×340×30 |
6-60 |
2×1.1 |
|
HG40 |
40000 |
Φ600-Φ4200 |
Φ400×120 |
Φ2×390×40 |
6-60 |
2×1.5 |
|
HG60 |
60000 |
Φ750-Φ4800 |
Φ450×120 |
Φ2×440×50 |
6-60 |
2×2.2 |
|
HG80 |
80000 |
Φ850-Φ5000 |
Φ500×120 |
Φ2×490×60 |
6-60 |
2×3 |
|
HG100 |
100000 |
Φ1000-Φ5500 |
Φ500×120 |
Φ2×490×70 |
6-60 |
2×4 |
If you have any question please let me know, we are a leading pioneer in manufacturing in automatic welding machine, Friendship Machinery is always together with you.
