H Beam Automatic Welding Machine , Horizontal Multi Spot Welding Machine
1. Main Introdction:
H beam horizontal welding line for H profile steel is a wonderful technical product that integrates mechanical, electric, and pneumatic technologies. The machine, using advanced technology of single-arc double-wire welding, greatly increases the product efficiency. It consists of welding machine, position fixing machine and conveyer.
After fixing the position for the web and two flanges of H-profile steel, the welding machine can automatically localize, clamp, adjust, weld, transport until finishing the all work. The automatic mode of this line greatly lowers the cost of manufacture. RFM-150A welding line for H-profile steel consists of position fixing machine, welding machine, conveyer. It is applicable in volume-produce of H-profile steels.
2. Main parameter:
Web height: 250-1500mm
Web thickness: 3-14mm
Flange width: 140-450mm
Flange thickness: 5-25mm
Length suitable work piece: 2000 - 15000mm
Maximum weight of work piece: 4000Kg
Sectional inclination of H-beam profile: ≤15°
Total power: 35.5KW+90KVA×2
Electric power: 380V 3Ph 50Hz (or according to buyer’s request)

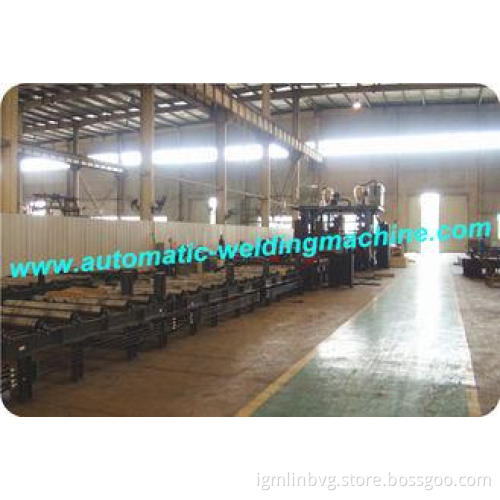

| Spot assembling/ welding machine in H beam automatic horizontal welding machine |
|
Main submerged arc welding machine used in H beam horizontal welding line. PS: if you want to see the video please search Luk Mankai on youtube |
