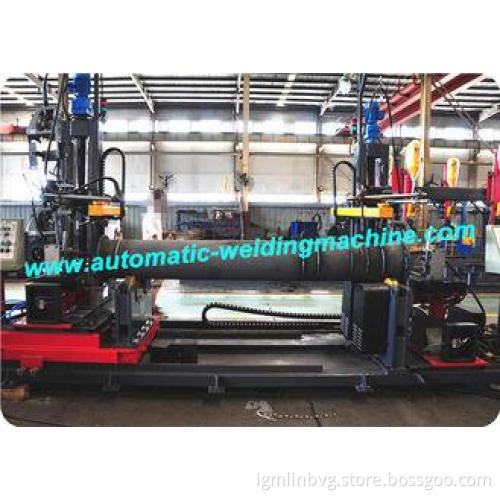

Easy Operation Pipe Flange Automatic Welding Machine With Rotator
Pipe flange welding machine (automatic welding machine) is mainly used to place the work-piece in the best position for welding and assembling with the worktable elevating, rotation, tilting, which can be used for various automatic or manual welding, butt welding or face welding of pipe, as well as welding of shafts, discs, barrel, etc. With advantages of compact volume, good appearance, light weight and easy operation. The positioner can be supplied for interfacing with robot or welding manipulators, to realize the welding automation.
|
Model |
FSM1013 |
FSM1313 |
FSM1613 |
|
Functions |
Positioning & Welding |
||
|
Size of main working table(mm) |
16500*800*250 |
16500*1025*320 |
|
|
Diameter of flange (mm) |
250-1000 |
250-1300 |
250-1600 |
|
Center height of truck (mm) |
800 |
1200 |
|
|
Size of vice-working table (mm) |
14000*200*250 |
14000*200*320 |
|
|
Length of steelpipe, Max. (mm) |
13000 |
||
|
Size of flange on the vice-working table (mm) |
150-500 |
||
|
Center height on the vice-working table (mm) |
800 |
1200 |
|
|
Rotary angle on the vice-working table (mm) |
±90º |
||
|
Speed of main &vice-working table (m/min) |
3 |
||
|
Total power of motor (KW) |
4 |
||
| Automatic pipe welding machine control panel, very easy to operate | |
| Control box of the Pipe automatic welding machine, the main electric parts is from Siemens or Panasonice, we could design the machine according to your requirments, if yo have interested in that feel free to call up us. |
