Down Press Or Pinch Automatic Welding Manipulator And Rotator 380v
1. Applicable industries
Petrochemical, boiler, refrigeration, medicine, aviation, pressure vessel, ship, food machinery, atomic energy etc.
2. Applicable scope
Apply to tube diameter from 16mm-300mm pipe, tube-elbow, the tube-flanges, carbon steel, alloy steel valves, stainless steel wire filling or not wire filling.
3. Main Technical Specifications
|
Tube-tube |
FSM-l6-40A |
FSM-36-90A |
FSM-70-160A |
FSM-l40-230A |
FSM-210-300A |
|
Welding Speed |
0.4-3r/min |
0.2-2r/min |
0.1-1r/min |
0.07-0.5r/min |
0.07-7r/min |
|
Suitable Dia. |
16-40mm |
36-90mm |
70-160mm |
140-230mm |
210-300mm |
|
Electrode Dia. |
1.6/ 2.4mm |
2.4mm |
2.4mm |
2.4mm |
2.4mm |
|
Filler wire Dia. |
0.8/ 1.0mm |
0.8/ 1.0mm |
0.8/ 1.0mm |
0.8/ 1.0mm |
0.8/ 1.0mm |
|
Filler Wire speed |
0-1500mm/min |
0-1500mm/min |
0-1500mm/min |
0-1500mm/min |
0-1500mm/min |
4. Power Source & Control System
|
Power Source Setting |
8-400A |
|
Rated input voltage |
380v |
|
Rated input capacity |
11.5KVA |
|
Rated power input |
9.0kw |
|
Voltage allow fluctuating range |
380v±10% |
|
Phase number |
3 ph |
|
Frequency |
50/60Hz |
|
Duty cycle |
400A 60% |
|
250A 100% |
|
|
Rated welding voltage |
TIG Welding,22.6v |
|
Rated load voltage |
70v |
|
Welding current adjustment range |
4-315A |
|
Current rise time |
0.1-25s |
|
Preheating time |
0.1-25s |
|
Current down time |
0.1-25s |
|
Pulse frequency |
0.5-500Hz |
|
Duty cycle adjustment range |
20%-50% |
|
Argon flow |
8-12L/min |
|
Weld procedure storage |
storage 100 procedure |
|
Cooling water flow |
1.2kgf/mm2 |

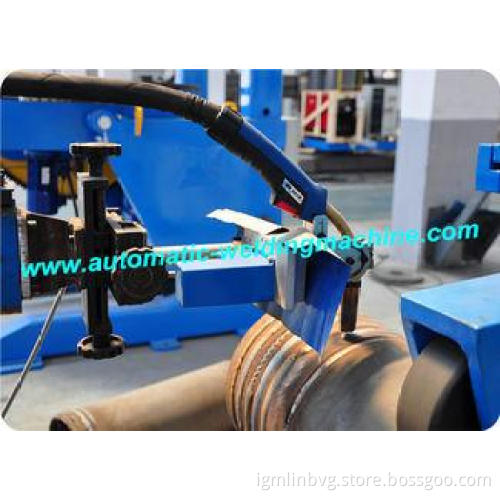

| We will use small welding rotator to turning the work-piece, and the upper roller will pinch the work-piece at the same time. This is Europe design and exported to UAE. |
| Automatic welding machine is really suitable for small pipe |
