Automatic Welding Equipment For Stainless Steel / Aluminum Wing Board
Video Link: https://youtu.be/VxlIxkU5BAM , https://youtu.be/T09PlqE3prM
Quick Detail:
T-tyep Welding Machine, It has stable function and fast back function. This arc guiding rack is triple axis mechanical tracing way, to ensure the welding gun aim at the correct position. Mainframe and welder are operated together. It is easily operated and high quality.
Description:

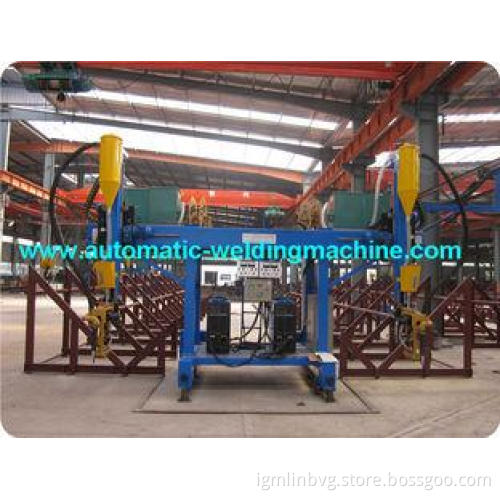

T-type welding machine, multi-head welding machine, welding equipment. Gantry type T-beam Multi-head Welding Machine can be widely used in T-beam production line. Adoption of 6 sets of welding units in 3-positions boost welding efficiency greatly. Double-drive controlled with inverter motor makes convenient speed-control, as well as ability of high-speed returning. Fast high efficiency performance assures extensive application in the welding of sections.
Technical Specification
1. Main technical parameter
The width of the wing board: 200-1000mm
The height of the former: 200-2500mm
Length of the track: 18000mm
Transversal span: 1700 mm
Welding position: fillet welding in the flat position
Welding speed: 0.24-2.4m/min
Size of the usable welding wire: 3.2-5 mm
Drive: double sides
2. Performance
3. Provide goods and compose parts
a. Machine assembly: Door frame, running gear, horizontal sliding gantry.
b. Welding tractor: Reduction column, electrical transmission, mobile body and its annex.
c. Arc guiding device: Welding gun, mechanical tension wire.
d. Welding powder recycle system: 100Kg solder powder recycling machine, separate feeding trough.
e. Electronic Control System: Control box, AC variable frequency bilateral drive.
f. Welding System: Chengdu vibration in 1250 submerged arc welding power, welding cable, transmission cable.
g. Spare parts: Tip*6, fuse 5A, 1A*3, button switch*3, melt the core 10A*2.
4. Technical files
a. Using manual of the machine (Include electrical schematic)
b. Shipping list
c. The certification of the machine
d. The basis of drawing of the machine
About Us:
1. Main electric elements are Siemens / Schneider.
2. Have strong design team, experience engineers supply good service.
3. Solve your technical problems in 24 hours and provide international warranty service for engines.
4. Design the appearance form according to customers’ request.
5. More than 13 years professional production experience, the quality is reliable.
6. CE and FCC certification.
7. Punctual delivery.
8. Accept OEM and ODM requirements.
9. Accept testing before delivery.
