WPC Plastic Pelletizer Machine

WPC Automatic Plastic Pelletizer Machine Of Wood Pellets Dryer

WPC pelletizing line Wood pellets dryer Quick Detail:

1.Dry sawdust,small wood chips dryer

2.300-1200kg/h

WPC pelletizing line Wood pellets dryer Description:

This dryer is suitable for drying materials of moisture 30~60%. The dryer is equipped with two fuel boilers, inlet, steel pipe, exhaust blower (fan), air lock and cyclone. Wet materials are put into the hopper. The fuel boiler generates hot air which mixes with wet materials and then is sucked into the pipes by the exhaust blower (fan) quickly. And then hot air is flowing and going though the curving pipes and buffer (drying chamber) of dryer, thus wet materials is finished to dry, and the dried materials are discharged from the outlet with air lock. This wood dryer reduces the moisture to 8~12% with the advantages of low cost consumption and high efficiency.

WPC pelletizing line Wood pellets dryer Applications:

It issuitable for dryingsensitive material like sawdust, rice hull, milled wheat straw, milled cotton/ corn stalks and so on.

It is made up of heat stove, tube, impulse jar, function tube, fan, and cyclone separator.

It can reduce moisture from 40-45% to 8-12%.

Fuel for the furnace: wood waste, coal. Waste oil and so on.

For raw materials with heavy humidity which is above 12%, you need to install a Dryer before further pelletizing or briquetting. This Air Current Type Dryer can reduce the humidity of wood materials below 12% per time. The Cost of this Air Current Dryer is much lower than Rotary Dryer.

It is professionally designed for drying different kinds of wood sawdust. It has advantages of low cost, low consumption, high capacity, easy operation and maintainace, etc. In addition, the round places of pipes can be changed to any angle which can save space and solve plant dimension limitation.

WPC pelletizing line Wood pellets dryer Specifications:

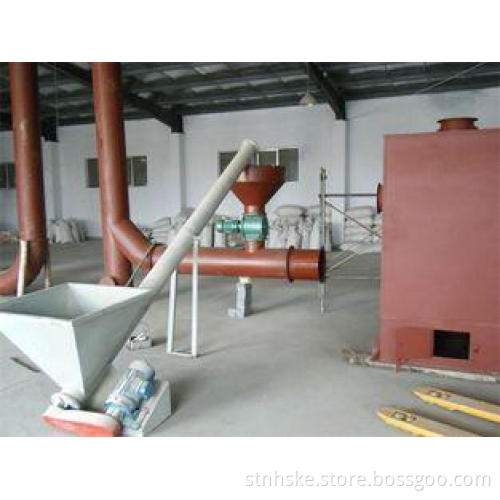

1: WPC pelletizing line Wood pellets dryer out look

2: WPC pelletizing line Wood pellets dryer brand supplier

WPC pelletizing line Wood pellets dryer Competitive Advantage:

1. Uniformity of drying

2.It can reduce moisture from 40-45% to 8-12%.

3. Fuel for the furnace: wood waste, coal. Waste oil and so on.
