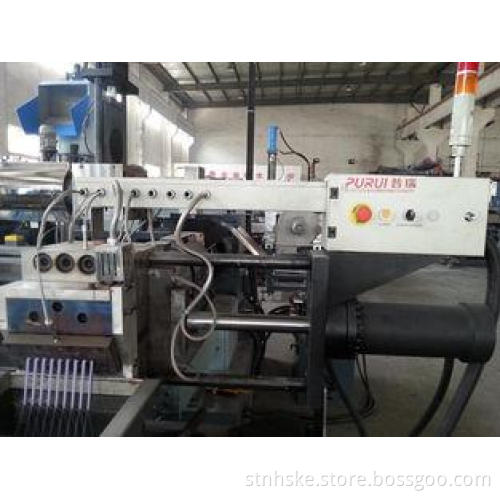

Nodddle Cutting Film Granulator Low Noise For Plastic Recycling Machine
Quick Detail for Pulls strand Film Granulator for plastic recycling:
· CE certificate
· Low noise and low power consumption
· Longer using life
· Stable output
· Perfect after sales service
· Provide engineer debugging
Description for Pulls strand Film Granulator for plastic recycling:
A. Features of pulls strand film granulator:
1. High efficiency
Compared with the primary design,the output of PURUI second generation film granulator machine has been increased 20%.
2. Low power consumption
The power consumption reduced 15% compared with the primary design,.
3. Highly automatically,
Only 2 people for one production line.
B. Applications of film granulator:
Applicable plastic materials: PE, HDPE, LDPE,PP, BOPP, PET, PA, EPE, etc
Material shapes: film, bag, , non woven fabric, crushed material(PE, PP)
Material types: (rolls, loose, bundled),
Material comes from offcut,below standard film and washed film.
Note: depending on different material properties, various downstream equipments are needed.
C. Machine components
|
No. |
Machine name |
Qty |
|
1 |
Belt conveyor |
1 |
|
2 |
Compactor |
1 |
|
3 |
ML main machine |
1 |
|
4 |
Hydraulic screen changer |
1 |
|
5 |
Water tank |
1 |
|
6 |
Gale dryer |
1 |
|
7 |
Vibration(operational) |
1 |
|
8 |
Wind transmission system & silo storage |
1 |
|
9 |
Electric control cabinet |
1 |
Specifications:
Main Technical Parameter:
Normal:
|
Model |
Screw diameter(mm) |
L/D |
Output(kg/h) |
|
ML85 |
85 |
25~33 |
120~180 |
|
ML100 |
100 |
25~42 |
200~350 |
|
ML130 |
130 |
25~36 |
400~550 |
|
ML160 |
160 |
25~33 |
600~800 |
|
ML180 |
180 |
25~33 |
800~1200 |
High output,low consumption:
|
Model |
ML85B |
ML100B |
ML130B |
ML160B |
ML180B |
|
Output(kg/h) |
200-350 |
400-550 |
600-800 |
800-1200 |
1000-1500 |
Competitive Advantage:
1. High automation level, try best to reduce your cost on labor and ensure high processing capacity.
2. All parts contacting with plastic material and water are made of high-quality 304 stainless steel; Ensure no second pollution to flakes.
3. Very low designated energy consumption and maintenance costs,ensure the lowest operating cost.
Full-automatic: free the human labor
The granulator line need at most 2 persons.
Waste plastic material(e.g. Film, fiber) is fed into cut compactor automatically by belt conveyor (roll-intake device is available to equip as option). In-feed rate is controlled via motor amperage of the cut compactor, therefore, there is no need for manual dosing by operator.
