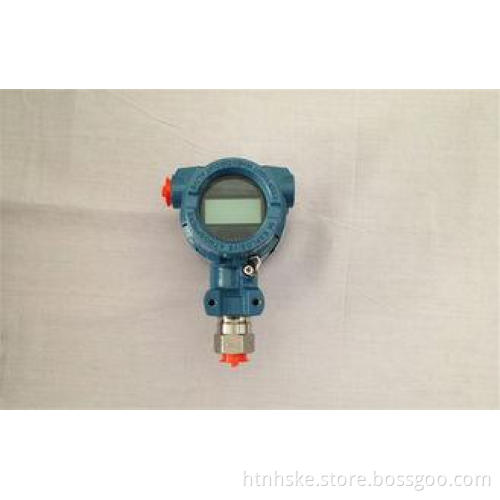

Smart Rosemount 2088G Industrial Pressure Transmitter with

Rosemount 2088G Industrial​ Pressure Transmitter with reliability , long - term performance , and maintainability

Quick Detail:

1. Performance of 0.065% with High Accuracy option
2. Lightweight, compact design for cost-effective installation
3. Protocols available include 4-20 mA HART and 1-5 Vdc HART Low Power
4. Absolute and gage pressure ranges up to 4,000 psi (276 bar)
5. Rangeability of 50:1

Description:

2088 Smart Pressure Transmitter is an
economical addition to the pressure transmitter line
of instruments. The 2088 is designed with reliability,
long-term performance, and maintainability in mind.
The 2088 maintain a specification conformance of at
least 3(1). The rugged, reliable performance for
which Rosemount transmitters are famous, coupled
with Smart capabilities, make these transmitters
exceptional values.
The 2088 is available in either gauge or absolute
pressure in pressure ranges to 4,000 psi (275 bar). It
utilizes a solid-state, polysilicon pressure sensor with
a choice of either 316L or Hastelloy C-276 isolating
diaphragms. The low oil fill of this design has very
little temperature effect and outstanding accuracy.
Features
The 2088 provides accurate, stable, and reliable
pressure measurement in difficult applications. Its
small compact design allows it to be directly
connected to a process - providing a quick, easy, and
cost effective installation.
The 2088 standard process connection is 1/2 inch
NPT but a variety of optional connections are
available. Optional connections range from multiple
threaded connections to our full line of manifolds and
remote diaphragm seals that provide solutions for
virtually any connection.
The 2088 also features an optional, fully configurable
LCD that displays pressure and diagnostic
information. The information displayed is directly
from the microprocessor which accounts for its
accuracy and reliability.

Applications:

The Rosemount 2088 pressure transmitter is available with a wide range of options to provide solutions for virtually any application.

Specifications:

Competitive Advantage:

• Manufactured by Rosemount
• Absolute of gage pressure measurement
• For pressures up to 4000 psi
• Accuracy: ±0.10%
• Rangeability: 20:1
• Integral manifold
• Stainless steel or Hastelloy wetted materials
• Smart communications
• External push button zero and span capabilities
