Customized Heavy Size Hexagonal Wire Netting Production Line Wire Mesh Manufacturers
The netting line is designed to make gabion mesh of various widths.The machine used exclusively for export, and we provide the Installation Services.
Netting line contains main netting machine, winding machine, wire tension machine, air compressor, standard spare parts, lubrication pump.
And the Scope of optional supply as follows, Wire spools, work platform, wire payoff.

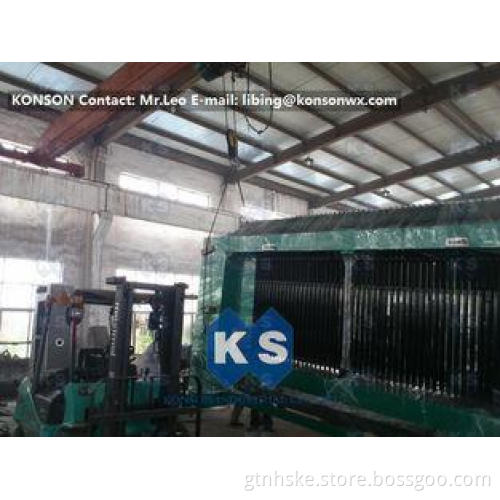

The model in picture is automatic gabion mesh machine KS120150-4.0
We can manufacture especial size as your request, User satisfaction is our unremitting goal!
Specification:
|
MODEL |
MESH SIZE |
MAX.WIRE DIA. |
MAX WIDTH |
PRODUCING RATE |
MOTOR POWER |
|
KS6080-2.4 |
60X80mm |
3.0mm |
2400mm |
>4.8 m/min |
15 kw |
|
KS6080-3.2 |
2.8mm |
3200mm |
18.5 kw |
||
|
KS6080-4.0 |
2.8mm |
4000mm |
22 kw |
||
|
KS80100-2.4 |
80X100mm |
3.0mm |
2400mm |
>4.9 m/min |
17 kw |
|
KS80100-3.2 |
3.0mm |
3200mm |
17 kw |
||
|
KS80100-4.0 |
3.0mm |
4000mm |
18.5 kw |
||
|
KS80100-4.3 |
3.4mm |
4300mm |
19 kw |
||
|
KS100120-2.4 |
100X120mm |
3.2mm |
2400mm |
>4.3 m/min |
19 kw |
|
KS100120-3.2 |
3.2mm |
3200mm |
19 kw |
||
|
KS100120-4.0 |
3.0mm |
4000mm |
19 kw |
||
|
KS120150-2.4 |
120X150mm |
4.0mm |
2400mm |
>4.4 m/min |
17 kw |
|
KS120150-3.2 |
4.0mm |
3200mm |
19 kw |
||
|
KS120150-4.0 |
3.5mm |
4000mm |
19 kw |
Range of supply
|
Main netting machine |
1 Set |
|
Winding machine |
1 Set |
|
Wire tension device |
1 Set |
|
Air compressor |
1 Set |
|
Standard spareparts |
1 Set |
|
Lubrication pump |
1 Set |
