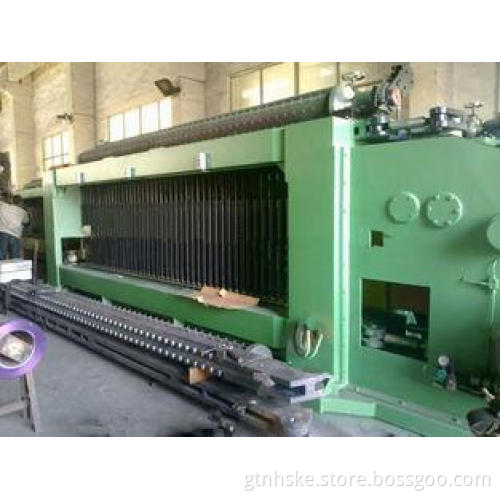

Automatic Hexagonal Wire Netting Gabion Mesh Machine Double

Automatic Hexagonal Wire Netting Gabion Mesh Machine Double Twist


Quick Detail:
1.the lnwl-2 series gabion mesh machines have been designed to make gabion mesh of various widths and
mesh sizes
2.The gabion mesh machine, is the professional equipment that produces hexagonal wire netting


Descrition:

the lnwl-2 series gabion mesh machines have been designed to make gabion mesh of various widths
and mesh sizes, we can produce the machine as your size. please note: all machines which showed
in globalmarket and made-in -china and alibaba are from jinlida. we supply advanced machine to oversea
clients directly only. if you want to buy advanced machine and want to get best after sales service,
please contact me directly.


Applications:

The gabion mesh machine, is the professional equipment that produces hexagonal wire netting, its product
extensively used for petroleum, building, farming and chemical engineering industry, keep warm piping
and other piping, be also used for rounding column, residence and park greening safeguard etc..
Gabion mesh is still more available to manufacture the gabion mesh box and extensively used for safeguard
and backing sea dike, hillside, road , bridge and reservoir and others, it is the best material of the flood
control at the same time.


Specifications:

1. Mesh sizes: 100X120mm

2. twist: double twist

3. Max. netting width: 2300mm

4. Max. galvanized wire diameter: 3.2mm

5. Max PVC wire diameter: 4.2mm

6. Spindle Speed:25r/min

7. Power: 11Kw

8. Size: 7200 x 1400 x 2400mm

9. Weight: 15MT

10. Theoretic output: 225m/hr

11. Automatic stop system (option): when the coiling finished or wire broken, the machine will stop

automatically

12. Infrared ray safety protection system (option)

13. Automatic oil system


Competitive Advantage:

1. JINLIDA company invented the first special equipment of double twisted wire netting making machine in
China (patent number: ZL99229381.2 and ZL00267066.5). And until now, we have persevered in
this area of gabion machine making for 15 years.

2. All the parts of gabion machine are processed by our own factory; no parts were send to outside to
process, so the quality an be ensured.

3. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with
cost price if customer need.
