2.3m Width Automatic PLC Control Gabion Mesh Machine Infrar
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
2.3m Width Automatic PLC Control Gabion Mesh Machine Infrared Ray Safety
Advantages:
1. PLC control system touch screen(Option)
2. Infrared ray safety(Option)
3. Automatic stop system (Option)
Descrition:
Gabion Mesh Making machine JINLIDA brand
1. Invented first double twist gabion mesh making machine in China
2. Apply for national patents, number is ZL99229381.2 and ZL00267066.5
3. SGS,TUV certificate
Gabion mesh making machine
JINLIDA series mesh making machine is designed to make hexagonal wire mesh of various widths and mesh sizes.We have 15 years export experience establishing trade with more than 30 countries, and Maccaferri, DEACERO, NOVA-S a.s.& DKG and TFS HOLDINGS are our long-standing relationship customers.

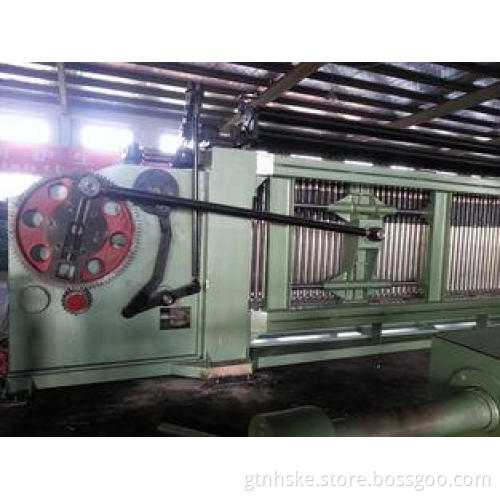

Pic 1 Mesh Making Machine
Specifications:
| Style | Mesh size | Width | Wire diamater | Spindle Speed | Twist | power of motor | Theoretic output |
| (mm) | (mm) | (mm) | (r/min) | (r ) | (kw) | (m/h) | |
| LNWL23-60-2ZX | 60X80 | 2300 | 1.6-3.2 | 25 | 3 | 11 | 165 |
| LNWL23-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL23-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL23-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL33-60-2ZX | 60X80 | 3300 | 1.6-3.2 | 25 | 3 | 15 | 165 |
| LNWL33-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL33-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL33-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-2ZX | 60X80 | 4300 | 1.6-3.2 | 25 | 3 | 22 | 165 |
| LNWL43-80-2ZX | 80X100 | 1.6-4.0 | 3 | 195 | |||
| LNWL43-100-2ZX | 100X120 | 1.6-4.0 | 3 | 225 | |||
| LNWL43-120-2ZX | 120X150 | 1.6-4.2 | 20 | 3 | 255 | ||
| LNWL43-60-3ZX | 60X80 | 1.6-3.2 | 25 | 5 | 165 | ||
| LNWL43-80-3ZX | 80X100 | 1.6-4.0 | 5 | 195 | |||
| LNWL43-100-3ZX | 100X120 | 1.6-4.0 | 5 | 225 | |||
| LNWL43-120-3ZX | 120X150 | 1.6-4.2 | 20 | 5 | 255 |
Pic 2&3 Wire tension device&Netting winding machine
Pic 4 Spring coiling machine
JINLIDA Series Prduction Line
Competitive Advantage:
1. All the parts of netting sheet cutting machine are processed by our own factory, no parts were send to
outside to process, so the quality can be ensured.
2. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
