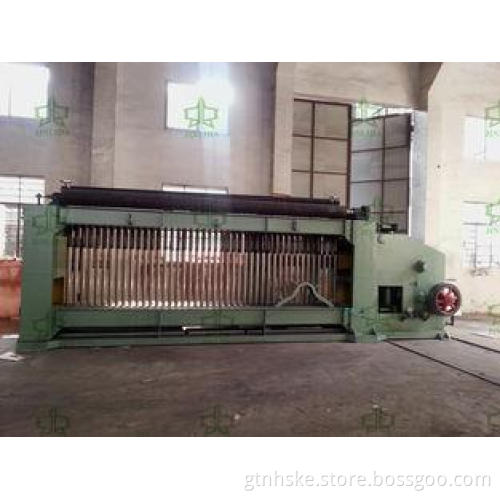

Automatic Stop System Gabion Machine with 4m max weaving wi
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|
Quick Detail:
1.Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be used
to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and
other construction project.
2. it is the good material to prevent or control flood.
Descrition:
Gabion Mesh Machine is the professional machine to produce inerratic gabion mesh, the mesh can be used
to produce coop, and is widely used as protect and sustain bank, hillside, road and bridge, reservoir and
other construction project, and it is the good material to prevent or control flood.
The new double rack drive hexagonal wire netting machine has been improved according to last double rack rive gabion machine that we develop in on August-11,2011. It is more steady and fast.
Please see below specification:
1. The double rack drive hexagonal wire netting machine is specificalized equipment for producing large diameter hexagonal mesh.
2. The equipment's framework is more reasonable, design is innovation, function is more perfect and safe using, the important is that weavng mesh is more easier than before.
3. The equipment is satisfied with normal wire netting machine's requipment, and also can meet weaving large diameter hexagonal mesh's demand.
Specifications:
|
Double Rack Drive Heavy Duty Hexagonal Wire Netting Machine |
||||||
|
Style |
Mesh size(A) |
Width |
Wire diameter |
Twisting Lines |
Spindle Speed |
Power of Motor |
|
(mm) |
(mm) |
(mm) |
r |
(r/min) |
(kw) |
|
|
LNWL2-60-S |
60-70 |
2000 |
3.2 |
3 |
25 |
11 |
|
LNWL2-80-S |
80-90 |
4 |
3 |
|||
|
LNWL2-100-S |
100 |
4.2 |
3 |
|||
|
LNWL3-60-S |
60-70 |
3000 |
3.2 |
3 |
25 |
15 |
|
LNWL3-80-S |
80-90 |
4 |
3 |
|||
|
LNWL3-100-S |
100 |
4.2 |
3 |
|||
|
LNWL4-60-S |
60-70 |
4000 |
3.2 |
3 |
25 |
22 |
|
LNWL4-80-S |
80-90 |
4 |
3 |
|||
|
LNWL4-100-S |
100 |
4.2 |
3 |
|||
|
Remark |
|
|||||
Competitive Advantage:
1. The double rack drive gabion machine has two rubbing frame, make it has enough power to weave 4.00mm wire mesh easily.
2. All the reed pipe have been changed to stainless steel to increase pipe inside diameter, can put more spring wire mesh and improve work efficiency.
3. All the parts of gabion machine are processed by our own factory; no parts were sending to outside to
process, so the quality can be ensured.
4. We can provide 12months guarantee for all the equipments, and if customer need, we will arrange our
technician to help install the machines in your country, and also could supply all the spare parts with cost
price if customer need.
