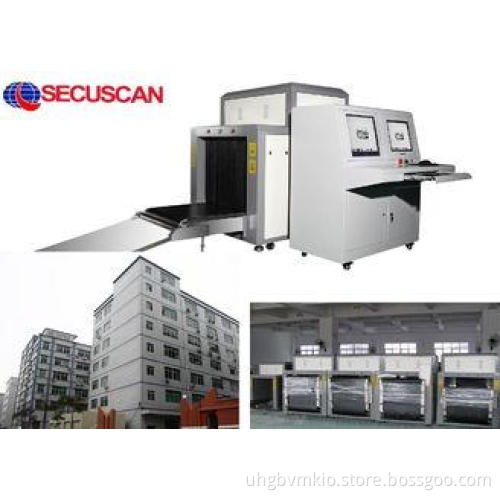

Security Luggage X Ray Machines , exhibition hall x-ray baggage scanner
x - ray Baggage Scanner model:AT100100
General Specification---
| Tunnel Size: | 1000(W)*1000(H)mm |
| Conveyor Speed: | 0.22m/s |
| Conveyor Max Load: | 200kg |
| Wire Resolution: | 32AWG to 38 AWG |
| Spatial resolution: | horizontal:1.3 or 1.0mm , vertical: 1.3 or 1.0mm |
| Penetration: | 28 to 34 mm Steel |
| Film Safety: | Guarantee ISO1600 Film |
| X-ray Leakage: | <1 μSv/h (at a distance of 5cm from external housing) |
| Pass rate: | 720 bags per hour |
X - ray Generator---
| Beam direction: | Diagonal |
| Generate angle: | 80 degree |
| Anode Voltage: | 100Kv to 160Kv adjustable |
| Anode power: | 0.4 to 0.5mA |
| Cooling / Duty Cycle: | Oil Cooling /100% |
Installation Data ---
| Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
| Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
| Operation Power: | 220VAC(±10%)50±3Hz |
| Power Consumption: | 1.3 KW (max), 1KW(working) |
| Noise: | <58db |
Image System ---
| X-ray Sensor: | L-Shaped Photodiode Array(multi-energetic) , 12bit Deep |
| Monitor: | High Resolution Color, LCD Accord , 19 inch |
| Image Processing: | Edge enhancement, imagestrengthening, image lightening,reducing darkening,image returning, image retrieval. |
| Image Processing: | 24bit for processing real time |
| Image Grey Level: | 4096 |
| Image storage: | Storage 60000 pictures in real time |
| Zoom: | max 16 Times Enlarge, Whole screen continuous observation |
Functions:
Assist of detecting organic and inorganic items such as weapons,
explosives and narcotics using different colour show
Applications:
Airports,
Transport terminals,
Buildings,
Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,
Prisons,
Hotels,
Schools ,
Convention centers,
Security checkpoints,
Special events location
Competitive Advantage:
Integrated, cost Effective, Turn-Key Security
Fit for small Baggage and Parcel Security Inspection.
Increased detection capability
Friendly interface for ease-of-use
Reliable performance and uncompromising value
Detailed Product Description
SECU SCAN X RAY SYSTEM offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on. Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model AT6550 easily accommodates the inspection of small baggage and parcels. SECU SCAN X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad. SECU SCAN branded products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.
As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD is an ISO 9001:2008, ISO14001:2004 and OHSMS18001 GB/T 28001-2001 (Occupational Health and Safety Management System) certified company. We have Radiation Safety license from China Environmental Protection Administration.
SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.
