Performance honda jazz radiator of auto cooling system OEM
- Min. Order:
- 1
- Min. Order:
- 1
- Delivery Time:
- 30 Days
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | MADE IN CHINA |
|---|
Product Description
Product Description

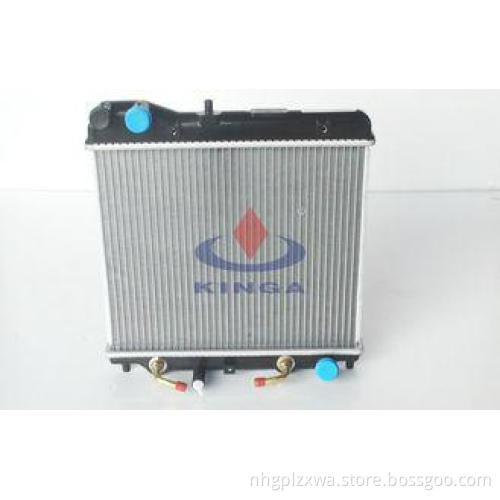

Performance honda jazz radiator of auto cooling system OEM 19010-PWA-901
Item Specifications
| Manufacturer Part Number | KJ-17083 |
| OEM | 19010-PWA-901 |
| Car Type | Jazz 2001 AT |
| Carton Size | 445 * 115 * 465 mm |
| Oil cooler | Φ 19 * 200 |
| Transmission | AT |
| Thickness | 16 / 26 mm |
| Core Size | 325 * 378 * 16 / 26 mm |
| Tank Size | 50 / 50 * 400 mm |
| Core Material | Aluminum |
| Tank Material | Plastic |
More Information
| KJ-17083-PA16 | JAZZ'01 | PA16/AT |
| KJ-17083-PA26 | JAZZ'01 | PA26/AT |
Question & Answer
20GP container about 450pcs
40HQ container about 1050pcs
Warranty:12 months
Structure Chart
| Brazed Radiator Structure | ||
| 1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
| 2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
| 3. Inlet Pipe | 10. Fin | 17. Water switch |
| 4. Top Tank | 11. Tube | 18. Bottom Tank |
| 5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
| 6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
| 7. Overflow Pipe | 14. Clip | |
Packing
Packaging design according to customer requirements.
NOTICE
1. Compare your radiator to the picture below
2. Flush the entire cooling system of the vehicle.
3. Use the astm-approved antifreeze and distilled or de-ionized water.
